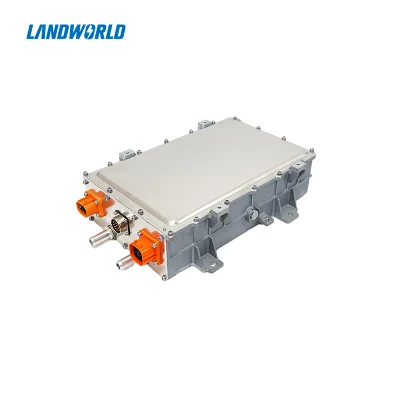

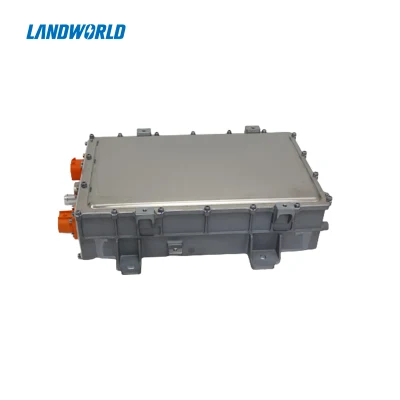

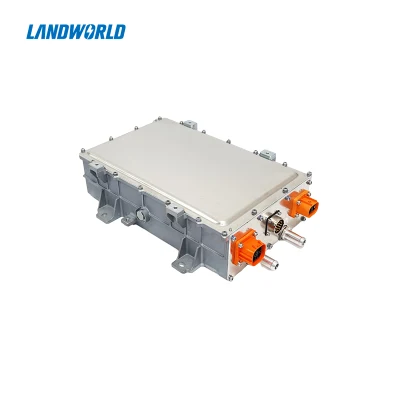

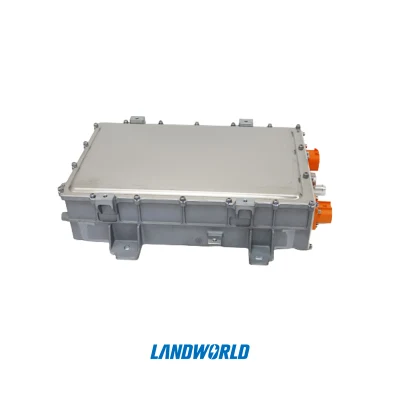

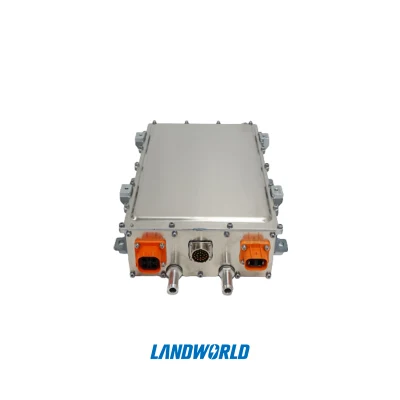

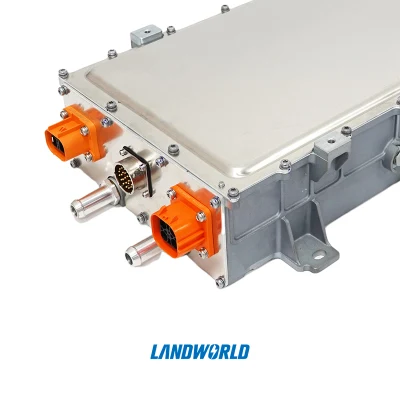

Landworld Fast Charging 11kw Electric Car Vehicle Passenger High Power EV Onboard-Charger

Get Landworld's high power 11kw fast charging onboard charger for electric vehicles. As a factory, we provide reliable and efficient EV charging solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
LWC11K-380S380-W
Transport Package
Carton Packaging
Specification
364x224x100mm
Trademark
LANDWORLD
Origin
China

Product Description

Landworld Fast Charging 11kw Electric Car Vehicle Passenger High Power EV Onboard-Charger
Product Features:
  1. Body Size: 364x224x100mm
  2. Weight:≤10.5KG
  3. Cooling method:Liquid cooled, flow rate≥8L/min
  4. IP rating:IP67
  5. Support on-line upgrading and fault diagnosis
  6. Compatible with single and three phase charging station
  1. Full digital software design, Redundant protection function design


Main Technical Parameters

Items Technical Spec. Remarks
Operation temperature -40-85ºC Coolant inlet temperature
Nominal output power 11kW  Support single phase input:6.6kW
Input voltage Three phase 304-456Vac (Line-line voltage, three phase four lines) Single phase:175-265VAC
Nominal Vout 200-450Vdc
Nominal output Current 32A Single phase input:20A
VCC power supply 9-32Vdc VCC
Eff. ≥94% @nominal voltage
Voltage accuracy ±1%
Current accuracy ±3%
Low voltage 12/24Vdc&200mAmax(WAKE_UP signal) Wake up BMS/VCU
Wake up CAN\AC\CC/CP Support booking charging
Wake CAN-BUS
up method ≤2mA Current consumption at sleep mode or standby status
Protection features Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection
EMC standard GBT 18387: 2008, EN 55022
