Basic Info.
Model NO.
MC20750HE
Charge Method
Quick Charge
Input Voltage
380VAC
Output Voltage
200-750VDC
Output Power
20kw
Output Current
60A
Connectors
Gbt
Standard
GB,En 61851;En61000;Jevs;UL2202,2231,2231-2 Ect
Usage
Charge EV
Packing
Carton Box or Wooden Box
Transport Package
Carton
Specification
78*43*63cm, 63kg
Trademark
Maxpower
Origin
Guangdong, China
HS Code
8504409999
Production Capacity
50000sets/Year
Packaging & Delivery
Package Size
84.00cm * 54.00cm * 63.00cm
Package Gross Weight
50.000kg
Product Description
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.7kw portable charger

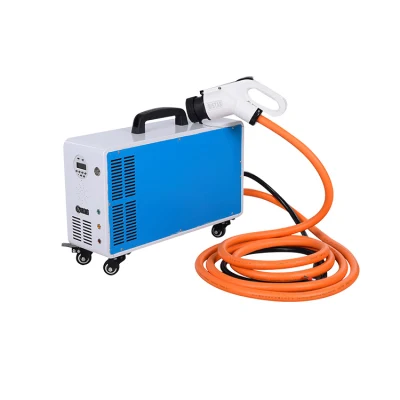

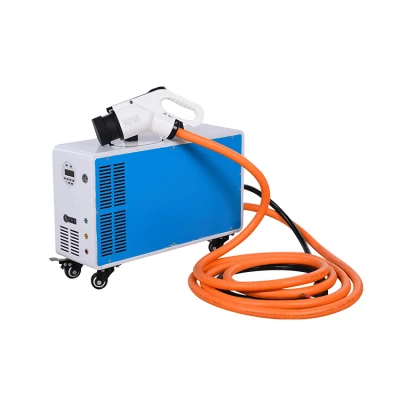

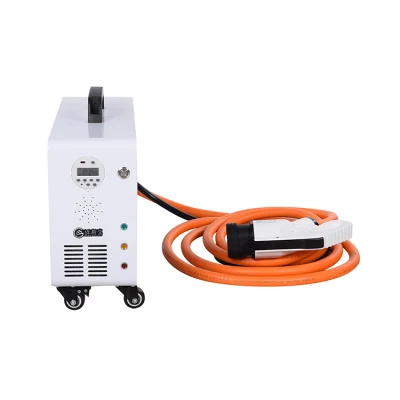

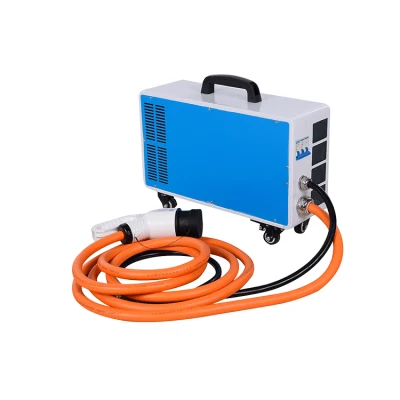

20kw Portable Charger
MAX POWER 20kw portable charger is easy to carry, the input voltage is 380V from home plug grid, can charge the EV at any time,
anywhere freely.
By center control module, power module, lightning protection unit, Intelligent and friendly interface.
Using high-performance charging modules, wide voltage output range from 200-750Vdc
Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
Small, light, No restraints.
High efficiency:≥95%
anywhere freely.
By center control module, power module, lightning protection unit, Intelligent and friendly interface.
Using high-performance charging modules, wide voltage output range from 200-750Vdc
Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
Small, light, No restraints.
High efficiency:≥95%
| Production Parameters | ||
| Model | 20KW | |
| AC Input | Input Rating | 380Vac±10% |
| AC Input Connection | 3P + N +PE, Wye connection | |
| Max. Input Current | 40A | |
| Frequency | 50 /60 Hz | |
| Power Factor | >0.99@full load | |
| Efficiency | 95% | |
| DC Output | Output Voltage Range | 200-750Vdc |
| Max. Output Power | 20KW | |
| Max. Output Current | 60A | |
| User Interface | TFT-LCD Touch Panel | No |
| Push Buttons | No | |
| Interface | USB | |
| Packing | Dimension | 506×161×277mm |
| Weight | 40KG | |
| Environmental | Operating Temperature | -40~85ºC,25ºC(TYPE) |
| Humidity | 5%-90% RH, non-condens,ng | |
| Altitude | 2000m | |
| IP Level | IP43 | |
| Mechanical | Cable Length | 5M(GB/T) Customized acceptable |
| Regulation | EN61851-1 | |
| Regulation | Certification | CE , ROHS |
| Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What's the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
