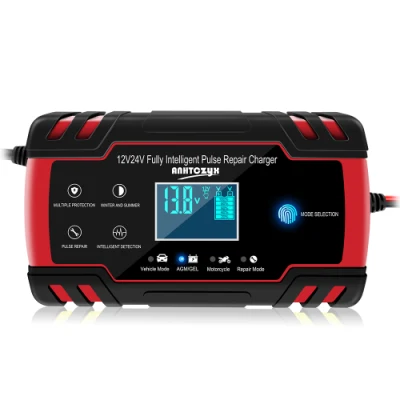

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Get a reliable Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display. We are a factory direct supplier, offering high-quality chargers for all your vehicle needs. Shop now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
ZYX-J30
Nominal Voltage
12V
Charger Style
Pulse Charger
Compatible Battery Type
12-Volt
Size
DC;AC
Certification
PSE, RoHS, CE, FCC;Ukca
Socket Type
Au/EU/UK/Us/Jp/Others
Recyclable
Non-Recyclable
Input Voltage
100-240VAC,50-60Hz
Power
140W
Minimum Start Voltage
8V
Battery Range
2-150ah
Output
12V 8A 24V 4A
Efficiency
85%
Standard
CE,Ice60335,En61000,En55014
Material
ABS
Weight
0.632kg
Protection
Output Short,Short Circuit,Overvoltage,Overcurrent
Packaging
20/30PCS Per Box
Plug
Au/EU/UK/Us/Jp
Color
Red;Yellow
Warranty
1 Year / 12 Months
Advantage
Fully Automatic
Transport Package
Carton Packaging
Specification
170(L)*98(W)*58(H)mm
Trademark
E-FAST
Origin
China, Anhui
HS Code
8504409999
Production Capacity
50, 000 Pieces Per Month

Packaging & Delivery

Package Size
25.00cm * 15.00cm * 10.00cm
Package Gross Weight
0.800kg

Product Description

Product Description

portable 12V 24V car AGM lead acid battery charger with lcd display

1.Product parameters
Brand Name: E-FAST
Model Number: ZYX-J30
Input voltage and current: 100-240VAC,50-60HZ
Power 140W
output voltage and current: 12V/8A; 24V4A
Battery Range 2AH-150AH
Battery Type 12V 24V STD;Lead-acid ;AGM ;GEL ;START STOP Battery
Color Red;Yellow
Material ABS
Dimension 170(L)*98(W)*58(H)mm
Weight 0.632kg
Applications Car;Motorcycle;boat;Vehicle;Van;truck with12v 24v battery
Certification CE;PsE;RoHS;FCC;UKCA
Protection
-Polarity protection
-Output short protection
-Short circuit protection
-Overvoltage protection
-Overcurrent protection
-Overheating protection
-Reverse connection protection
Plug AU/EU/UK/US/JP
Efficiency 85%

2.Product Function
(1) Output short circuit and anti-reverse connection: the product has the prompt of output short circuit and reverse connection of battery (there is spark, LCD displays "ERO", and the product will not be damaged due to reverse connection or short circuit during the detection process);
(2) Battery power detection: the AC input voltage is not connected, and the battery clip is clamped at both ends of the positive and negative poles of the battery (red positive and black negative), which can display the current and voltage parameters of the battery (digital tube display data: voltage and ambient temperature cycle display, and the power is displayed in percentage form according to the detected data);
(3) Winter and summer mode: during the charging process, detect the ambient temperature, adjust the product charging state in time, and ensure the battery life and charging safety. Winter mode: LCD displays snowflakes, summer mode: LCD displays the sun;
(4) Over-temperature protection: the product has the over-temperature protection function. If the product detects that the temperature is too high, it will automatically start the over-temperature protection program. When the temperature returns to the normal value, the initial charging state will be restored;
(5) Overcharge protection: the product has the overcharge protection function to avoid the battery service life reduction caused by overcharge and enhance the reliability of charging safety (the maximum charging time is 20H by default);
(6) Charging voltage self-test: after the battery is charged, it will automatically self-test without manual switching. If it passes the self-test, it will enter the floating charge. Otherwise, it will enter the compensation charge. If the compensation charge is completed, it will enter the floating charge;
(7) LCD display status:
a: Full state: LCD display "OFF", battery grid "100%";
b: Clip disconnection mode: LCD displays "OFF" and power grid is "100%";
c: Fault mode: LCD displays "ERO" and "Flt" icons, and the buzzer rings long;
d: Charging state: LCD circularly displays voltage, current and temperature, and battery grid "charging effect display";
e: Repair mode: LCD displays "Rep" and power grid is "100%";
f: No-load detection battery: LCD displays the voltage and temperature in a cycle, and the power grid is displayed in percentage according to the battery power.

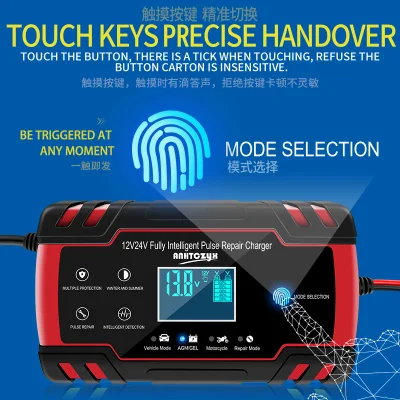

3.Product function mode selection
(1) Car battery charging mode
a: Charging current: Imax: [email protected]. b: Charging voltage: 13.5V - intelligent control voltage (winter mode: 15.5V, summer mode: 14.6V, spring and autumn mode: 14.9V). c: battery type: lead-acid battery. d: charging maximum current Imax: [email protected] e: maximum single charge duration tmax: 20H (maximum single charge capacity 85-95AH).
(2) AGM battery charging mode a: Charging current: Imax: [email protected]. b: Charging voltage: 13.5 V. c: battery type: AGM battery. d: charging maximum current Imax: [email protected] e: maximum single charge duration tmax:20H (maximum single charge capacity 10-150AH).
(3) Motorcycle charging mode a: Charging current: Imax: [email protected]. b: Charging voltage: 13.5 V. c: battery type: conventional DC12V lead-acid battery. d: charging maximum current Imax: [email protected] e: maximum single charge duration tmax:20H (maximum single charge capacity 2-15AH).
(4) Lead-acid battery repair mode a: repair principle: positive pulse voltage repair mode. b: repair voltage: 14.9V. c: battery type: restricted to lead-acid type batteries. d: maximum repair time tmax: 20H.

4.Charging Steps
(1) detect the state of the battery before charging, the output alligator clips on both ends of the battery, red positive and black negative, with LCD display data, this step must ensure that AC power is not accessed, only AC power disconnected before operation;
(2) the charger AC input line into the plug, and then open the plug switch.
(3) mode selection and then charging.
(4) when the charger shows "FUL" or "End", indicating that the charging or repair mode has ended, disconnect the AC input, observe the battery capacity status (LCD cycle display voltage and temperature, power grid shows the current battery capacity). After confirming that it is full, disconnect the alligator clips from the battery.

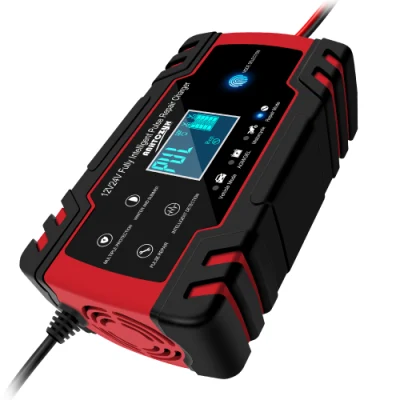

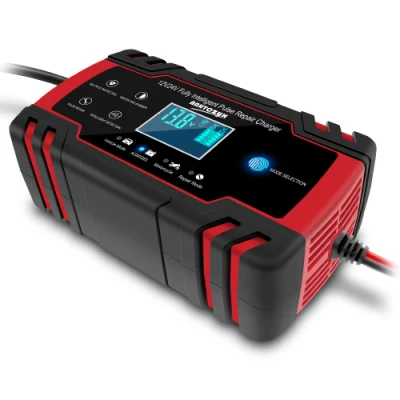

Detailed Photos

Charging stepsChar

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD DisplayPortable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display
Packaging & Shipping

Package specification: 20/30pcs/Carton;Dimension:48.5*35*27.5cm/48*41.5*34.5cm

Color Box size23*13*6.5cm

Delivery Detail: sample within 7 work days,15~25 days for bulk order


Company Profile



Tianchang Zhiyun Electronic Technology Co., Ltd


Professional battery charger manufacturer



Tianchang Zhiyun Electronic Technology Co.,Ltd.,is a technological innovation enterprise specializing in the research and development, production, and sales of electronic products such as battery chargers, power supplies, etc. The company is located in Tianchang City, Anhui Province,covering an area of 1000 square meters,having a variety of advanced production equipment.

The company's independent flagship brand E-FAST has multiple models of products, including ZYX-J10 (12V6A); ZYX-J20(12V7A); ZYX-J30 (12V8A 24V4A);ZYX-J40(12V6A 24V3A); ZYX-J50(12V10A24V5A);ZYX-J99(6V/12V2A); TK100(batteryTester);TK300(12V6A); TK400(12V6A); TK500(12V12A 24V6A); TK700 (12V10A 24V5A), mainly suitable for lithium batteries, lead-acid batteries, AGM and GEL batteries, WET batteries,Start stop batteries,etc.

The company also has 36V 48V 60V 64V 72V 84V 96V 12AH 20AH 32AH 38AH 45AH 52AH and other models of lead-acid battery chargers for electric vehicles, electric bicycles, Car,motorcycles, and scooters.

In addition, the company has ternary lithium batteries and iron lithium battery chargers of models such as 24V, 36V, 48V, 60V, 72V, 2A, 3A, 5A, 10A, 12A, 15A, 18A, 30A, 20-30A, 25-35A, 40-60A, etc.

In short, we can offer various types of battery chargers with a wide range of coverage. I specialize in wholesale and can provide you with a variety of customized services, including product appearance, colors, and logos. If the customer chooses us, we promise that you will enjoy preferential policies such as minimum order quantity, free samples and large discounts.

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display



Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display
