7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger

Discover our range of compact and portable EV chargers with 4.5m cable. As a factory, we offer high-quality electric vehicle charging wallbox EV chargers at competitive prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Q6
Origin
China
HS Code
8504409990
Production Capacity
50000PCS/Month

Product Description


Datasheet Model 7KW 11KW 22KW Optional
Input Power Supply L+N+PE L1+L2+L3+N+PE L1+L2+L3+N+PE
Rated voltage AC 230V AC 400V AC 400V
Rated current 32A 16A 32A
Frequency 50/60Hz 50/60Hz 50/60Hz
Output Output voltage AC 240V AC 400V AC 400V
Output current 32A 16A 32A
Rated power 7KW 11KW 22KW
User interface Cable length 5M Customized
Outer case PC9010
LED indicator  Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
Emergency stop include
Start-up mode Plug-and-Play Yes
RFID Reader - Y N
Network 4G - Y N
RJ45 - Y N
Bluetooth/WiFi - Y N
Security RCD A+DC6mA
Ingress Protection IP65
Surge Protection IK10
Electrical Protection Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel
Warranty 15 months
Cooling mode Natural cooling
Environment Installation Wall-mount/Pole-mount
Working Temperature  -30ºC~+50ºC
Storage temperature  -40ºC~+80ºC
Operating humidity 5%~95%  no moisture condensation or frost
Working Height <2000M
Specifications Product Dimension 23*16*7.5cm
Package Dimension 47*24*25.5cm
Net Weight 2.5KG
Gross Weight 3.5KG
Packing list Charging pile 1Pcs
Instructions 1Pcs
Cable 1Pcs
Plug holder 1Pcs
Screw (for installation) 1Pcs
Outer packaging Carton
Other Efficiency 98
Insulation resistance ≥10MΩ
Power of control module 7W
Terminal include


After Sales Service:
Reply your inquires within 24 hours

Sample is available for quality checking
OEM/ODM service is supported
Good after-sales service is available
Offer customized service and accept OEM&ODM
Factory direct sales

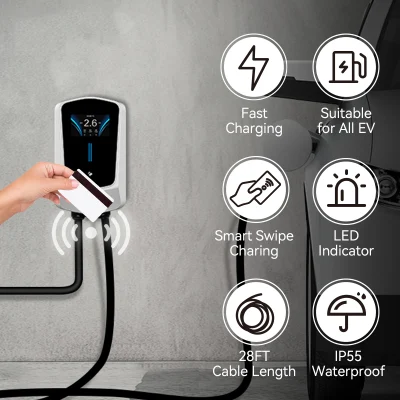

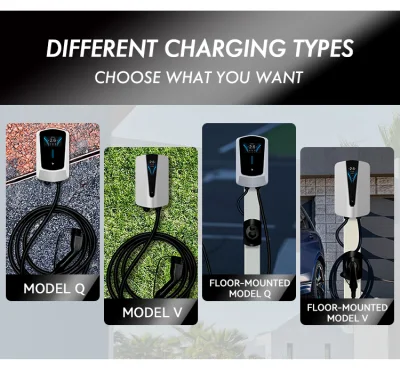

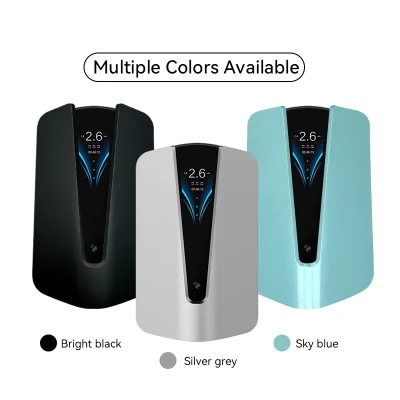

Detailed Pictures:
7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger 7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger
7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger


Company Profile:
7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger


Certificate&Trade show&Transportation:
7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger7kw 11kw 22kw 16A Compact and Portable EV Charger with 4.5m Cable Electric Vehicle Charging Wallbox EV Charger

Why Choose us?:
Factory outlet price, save your costs at most
CE, FCC, RoHS certified products
Quality control, low defect rate
1 year warranty
Fast sample and lead time, rush order accepted
Customized Logo and Color USB are available
Excellent OEM and ODM ability, one-stop solution for your custom projects



FAQ:
1.Q: Are you a factory or a trading company?
A: We are a manufacturer. OEM and ODM are available for you.

2. Can we have a sample order?
A: Of course! Any sample order is welcome for testing and checking.

3. How about the package
A: We use neutral package,of couse,we are pleased to customize for you

4. How to customize my own brand logo?
A: Provide us your logo or design files,we will provide free artwork for you approve before making sample.

5. How about the lead time?
A: For sample order, we usually need 5-7 work days, for bulk order, we usually need 15-20 work days for mass production.

6. How about the warranty?
A: 1 year

7. How should we do if the product is failed?
A: Just need to tell us the quantity and the problem, send us the failed image&video, if the problem caused by manufacturing quality, we will send new ones.

8.  How about the shipment?
A: We usually ship by express(DHL,UPS,Fedex,TNT) or by air, for bulk order, we usually ship by sea.
