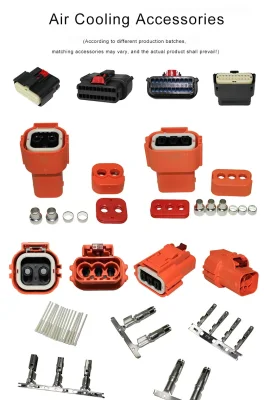

- Accessories
- Product Parameters
- Certifications
- Company Profile
Basic Info.
Model NO.
HK-MF-108-32
Product Name
on Board Charger
Frequency
45Hz~65Hz
Mechanical Impact and Vibration Grade
QC/T 895-2011
Protection Grade
IP67
Type of Cooling
Enforce Air Cooling
Output Voltage
108V
Output Voltage Range
80~161V
Output Current
32A
Output Power
3300W@220VAC 1650W@110VAC
Size
198(Length) X 244(Width) X 95(Height)(Fan-Cooled)
Baud Rates
250K or 500K
Transport Package
Carton
Specification
198(length) x 244(width) x 95(height)(fan-cooled)
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month
Product Description
| Basic Specification | Protection grade | IP67 | |
| Input voltage range | AC90V~264V | Operation temperature | - 40ºC~85ºC |
| Input current | 16A | Storage temperature | - 40ºC~105ºC |
| Frequency | 45Hz~65Hz | Charging control | CAN or Enable |
| Power factor | ≥0.99 | Size | 198(length) x 244(width) x 95(height)(fan-cooled) |
| Efficiency at full-loading | ≥93% | Protection | Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature |
| Mechanical impact and vibration grade | QC/T 895-2011 | Cooling way | Enforce Air Cooling, liquid-cooling |
| OBC 3.3KW | ||||||||
| Model | Type of cooling | Output voltage | Output voltage range | Output Current | Output power | Net Weight (kgs) | Gross Weight (kgs) | Dimension (CM) |
| HK-MF-48-40 | Enforce Air Cooling | 48 | 35~70V | 40A | 2000W@220VAC /1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 |
| HK-MF-108-32 | Enforce Air Cooling | 108V | 36~145V | 32A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 |
| HK-MF-144-23 | Enforce Air Cooling | 144V | 50~198V | 23A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 |
| HK-MF-216-14 | Enforce Air Cooling | 216V | 70~290V | 14A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 |
| HK-MF-312-10 | Enforce Air Cooling | 312V | 110~440V | 10A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 |
| HK-MF-540-06 | Enforce Air Cooling | 540V | 170~650V | 6A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 |
