Basic Info.
Model NO.
SF200-6
Max. Loops
50 Times
Display
LCD
Channels No.
6
Transport Package
Seaworthy Packing
Specification
Product size: 780*400*170 mm
Trademark
DK
Origin
China
HS Code
9030849000
Production Capacity
50000 Pieces/Year
Product Description
6V 12V 16 V 18V AGM GEL VRLA Lead Acid Rechargeable Battery Auto Cycle Charging Discharging Capacity Measuring Tester 20A Discharge - 10A Charge
Description:
·SF200-6 is a high precision capacity detection instrument integrating with charge & discharge, auto-cycle detection, it can set the voltage and current of charge and discharge upon the requirements, and has automatic charging and discharging cycle function. High precision and easy operation.
BATTERY CHARGING-DISCHARGING TESTER
MODEL NO.: SF200-6
Technical Specification
Packing Information
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Detection Equipment, Charging Station, Shared Mobility Solution. We provide the clients with the complete solution of storage batter service.
Products Category:
Battery Charging & Discharging Detector
Battery Detection and Recovery Equipment
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
Delivery
Sample order dispatched by express via DHL, FedEx, TNT, UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-sales service
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL, UPS, TNT or FedEx at our account and guide the user to replace via phone, email or video.
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
Description:
·SF200-6 is a high precision capacity detection instrument integrating with charge & discharge, auto-cycle detection, it can set the voltage and current of charge and discharge upon the requirements, and has automatic charging and discharging cycle function. High precision and easy operation.

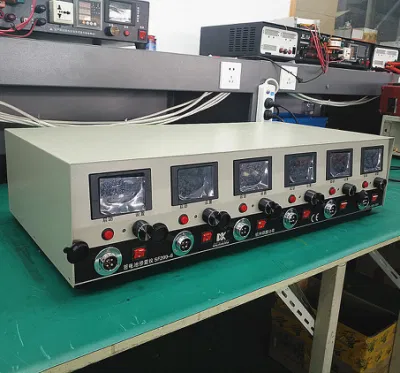

BATTERY CHARGING-DISCHARGING TESTER
MODEL NO.: SF200-6
Application: Storage batteries 6V/12V/16V/18V
Basic Function:
1. Charge
2. Discharge
3. Auto-cycle Charge and Discharge
4. Data records
1. Charge
2. Discharge
3. Auto-cycle Charge and Discharge
4. Data records
Characteristics:
· 2 operation modes: Simple mode and professional mode to meet the different needs of user.
· Max. Loop times: 50 times
· 6 work modes are optional
· Supporting the computer communication
· The function of computer soft drawing the battery characteristic curve, data file saving, the vertical curve checking and so on
· Simple setting, easily operation

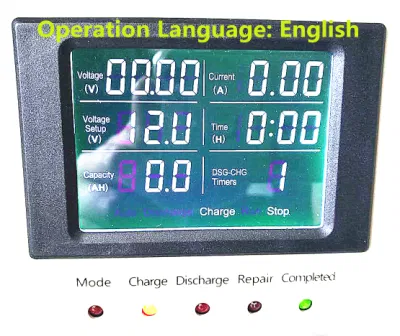

· LCD display
· Low noise and low consumption
· The set parameters is automatic saved in the whole process
6 Work Modes
6 Work Modes
| Mode Code | The name and function displays in computer software |
| 0 | Query mode of historical cycle data |
| 1 | Capacity test |
| 2 | Typical charge |
| 3 | Loop mode 1, starting with discharge and ending with charge, the loop number is 1-50 times |
| 4 | Loop mode 2, starting with charge and ending with charge, the loop number is 1-50 times. |
| 5 | Loop mode 3, starting with discharge and ending with discharge, the loop number is 1-50 times |
| 6 | Loop mode 4, starting with charge and ending with discharge, the loop number is 1-50 times |
Technical Specification
| Model No.: | SF200-6 |
| Channel Number: | 6 |
| Discharge current accuracy: | +/-0.03A |
| Discharge voltage accuracy: | +/-0.03A |
| Charge current accuracy: | +/-0.1A |
| Charge voltage accuracy | +/-0.05V |
| The minimum charge voltage | 7.0 V |
| The maximum charge voltage | 23V |
| The transfer condition of charging and floating charge | After reaching the high constant voltage and charge for 3.5h, the system automatically transfer to the floating charging |
| Discharge current | 0.5-20A constant current adjustable |
| Charge current | 0.5-10A constant current adjustable |
| Loop number: | 1-50 times |
| Discharge terminal voltage: | 2.0V-20V adjustable |
| Charging constant voltage: | 7.0V-23V adjustable |
Packing Information
| Model | Product Size | Package Size | G. W. |
| SF200-6 | 780*400*170 mm | 915*49*30 mm | 20.3 KG |
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Detection Equipment, Charging Station, Shared Mobility Solution. We provide the clients with the complete solution of storage batter service.
Products Category:
Battery Charging & Discharging Detector
Battery Detection and Recovery Equipment
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
- Beginning from 2005, we have achieved the leadership of our industrial
- Over 15 years of experiences
- Powerful function and superior performance
- Professional and strong R&D team.
- Technical leadership and advantage
- Advanced production technology and automatic assembly line
- Market verification and specialized users approval from over 50 countries
- Rich experience in market operation
- Professional after-sale service, lifelong after-sale service provided
Delivery
Sample order dispatched by express via DHL, FedEx, TNT, UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-sales service
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL, UPS, TNT or FedEx at our account and guide the user to replace via phone, email or video.
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
- Do not operate or use as per the manual and cause the damage
- The instrument was disassembled or repaired by the non-authorized person by our company
- Unexpected factors or man-made causes the damage, such as the water inflowing, mechanical damage, falling, burning and so on.
