Product Description

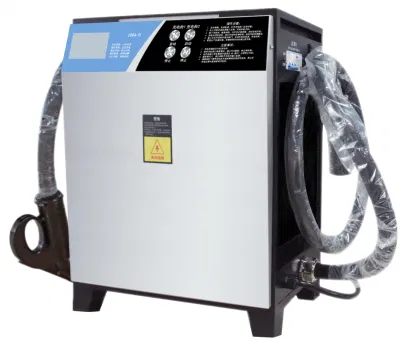

lithium battery charger for AGV Forklift AGV Tractor with CE certificate
Application:AGV tractor ,AGV forklift
Model | AGV-80V30A | AGV-80V100A | AGV-80V150A | AGV-80V200A |
Rated output power | 2.4KW | 8KW | 12KW | 16KW |
Rated output current | 30A | 100A | 150A | 200A |
Output voltage range | DC30V-100V | |||
Current adjustable range | 5A-30A | 5A-100A | 5A-150A | 5A-200A |
Rated input voltage | AC220V±15% | AC380V±15% | AC380V±15% | AC380V±15% |
Input current range | <16A | <20A | <30A | <40A |
Frequency | 50-60HZ | |||
Working temperature | -20ºC-+50ºC | |||
Charging life | ≥50000times | |||
Dimension | 800*610*543(H*W*D) | |||
Weight | 50KG | 65KG | 70KG | 75KG |
Protection level | IP20 | |||
Communication method | RS485,CAN,Ethernet,WIFI,RJ45(optional) | |||
Protection method | Short circuit,Over current,Over voltage,Reverse connection | |||
Charging interface | ||||
Interface Brush board | SCD Series(steel-carbon alloy) | |||
Optional electrode | Single/double/four/six poles | |||
Interface mode | Side charger | |||
Scheduling and CAN communication options | 1,RW :RJ45network port scheduling+wireless WIFI, CAN, BMS 2,Full WIFI dispatch and CAN BMS communication | |||
Brush board material | Brush block(steel-carbon alloy),Brush plate(T2 copper&UHMWPE) | |||
Optional current level | 30A/50A/100A/200A/300A |
ISO9001
IS014001
OHSAS18001
IATF16949
COC/TUV/CE
Six Reasons to Choose Us
1,Lithium battery charger manufacturer integrating R&D, design and production(one-stop service)
2,The introduction of German ABL advanced technology has won many patents.
3,The product line is complete, which meets the lithium battery charging requirements of more than 90% of EV in the current market, and meets a variety of voltage and frequency applications. It can be customized according to customer requirements.
4,Large-scale standardized production base, with sufficient capacity, its own supply chain, excellent R&D engineer team, and perfect product testing equipment, ensures that every product that goes out is carefully tested.
5,The product has passed the laboratory test and obtained UL and CE certification.
6,Product modular design, self-diagnosis function, after-sales engineer 7 * 24-hours online service.
