Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP

Gsl Energy offers IP65 waterproof electric car battery chargers with smart app control. Factory direct, reliable 3 phase and 1 phase options. 7.4kw to 22kw.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • <span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span cke-mic-navigation-content="" style="border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Customer Feedback</span></span></span></span>
  • <span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span cke-mic-navigation-content="" style="border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Factory Introduction</span></span></span></span>
  • <span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span style="border:0px;padding:0px;color:#333333;font-size:14px;font-family:Arial, Helvetica, sans-serif;line-height:18px;"><span cke-mic-navigation-content="" style="border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;">Certifications</span></span></span></span>
Overview

Basic Info.

Model NO.
GSL-EV Charger-13
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
3 Years
Transport Package
Wooden Case
Specification
169*380*151mm
Trademark
GSL ENERGY
Origin
Guangdong

Product Description



Product Description


Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP

GSL Energy IP65 Waterproof WallBox 3 Phase 1 Phase 7.4Kw 22Kw Electric Car Battery Charger With Smart APP

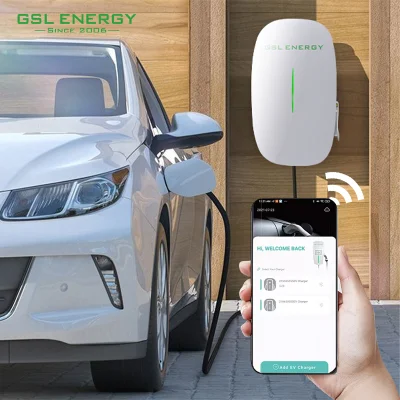

GSL Energy EV charger supplies power to any electrical vehicle with its type 1 or type 2 connector. The wall-mounted design as well as its IP65 dust and waterproof housing makes the PV product suitable for outdoor or indoor spaces. The output of our EV charger ranges from 16amps to 32amps.



Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP

Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP
EV Charger Spec

Electrical

Charging capacity

1.3kW - 7.4kW / 4.1kW - 22kW

Charge mode

Mode 3 (IEC 61851-1)

Output power

Selectable 1-phase or 3-phase, 230-400V 16 A to 32 A, 50-60 Hz

Connector options

Fixed cable type 2 plug or type 2 Socket

Fixed cable length

6m (18 ft)

Cable entry

Rear or bottom

Protection and Certification

Ground fault detection

Patent Design 0.3mA AC

Build-in RCD

TYPE A + DC6mA leakage sensor built-in

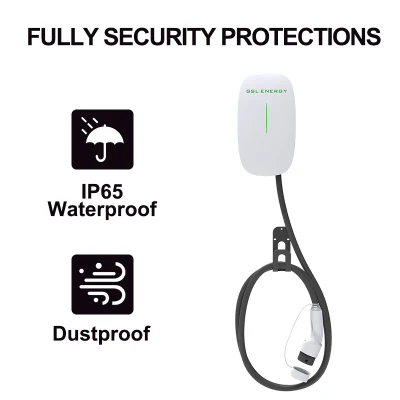

With cable IP65
Socket IP65
Housing fire ratings V0
Operating temperature -25ºC to +55ºC

Compliance

IEC61851-1,IEC61851-21-2,IEC61000-4
CE EMC EU/2014.CE Low Voltage EU/2014/35

Certificate

CE, UKCA, SAA

Commectivity

Authorization

Auto-start standard / RFID card option
Status indication LED ring
WLAN communication Wi-Fi / Smart App
Mechanical
Housing Polycarbonate
Dimension (W*H*D) 169*380*151mm
Mounting Wall or Pole

Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP
Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APPGsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APPGsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP
Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP
Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP


Customer Feedback



Ratings & Reviews

Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP
Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP
Factory Introduction

Factory Introduction



GSL ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.



-- Over 500 workers in 12000 sqm2 battery cell production and pack manufacturing base.


Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP

Certifications

-- Passing all certificates , VDE, IEC62133, IEC62219, CE, UN38.3, MSDS, etc.

Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP


Exhibition

Through years development and experienced international sales team in Shenzhen, GSL ENERGY green solar and lithium battery products have been sold to clients all
over the world.



Gsl Energy IP65 Waterproof Wallbox 3 Phase 1 Phase 7.4kw 22kw Electric Car Battery Charger with Smart APP

GSL Energy IP65 Waterproof WallBox 3 Phase 1 Phase 7.4Kw 22Kw Electric Car Battery Charger With Smart APP
For more details and price, please send us an enquiry below ⇓⇓⇓



Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
