Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger

Introducing our latest product, the Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger. As a factory, we pride ourselves on superior quality and cutting-edge technology.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Customer Reviews
  • Contact Us
Overview

Basic Info.

Model NO.
3.3kw 6.6kw charger
Input Voltage
110V or 220V
Portable or on Board
on Board
Intelligent Charge
Yes
Warranty
1 Years
Name
4th Generation 1800W 3300W 6600W Lithium Ion EV
Battery Type
LiFePO4 , Ncm
Communication
Can/ Enable
Can Baud Rate
125K /250K /500K
with Cc Cp
Yes
Power
1.8kw /3.3kw /6.6kw
6.6kw Charger
Charger HK-Lf-108-60 Enforce Air Cooling 6.6kw
Transport Package
Standard Export Packing
Specification
Standard Size
Trademark
Deligreen
Origin
China
HS Code
8504409992
Production Capacity
10000 Piece/Month

Product Description

Product Description

Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger

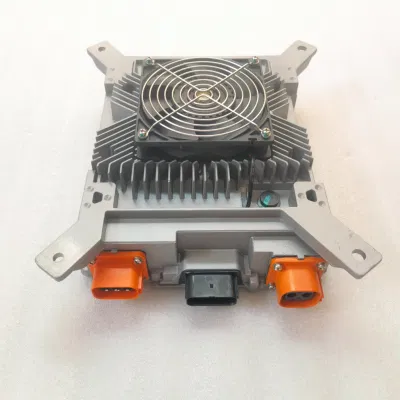

Deligreen Charger NEW VERSION --- HK-M series 3.3KW charger / HK-L series 6.6KW charger is a product specially designed for electric vehicle power battery supplementary electric energy according to the national standard of charger. This product not only has the advantages of high efficiency, small size, high stability, long life, etc., but also has the characteristics of high protection level, high reliability, and complete protection functions. It is an ideal power source for electric vehicle charging.
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Features :

1.Support UDS diagnosis CAN wake-up function


2.Fully sealed process can work reliably under the conditions of -40ºC-+85ºC



3.Built-intemperature sensor to shut down output under hazardous operating conditions (internal 90°C)



4. Protection class IP67 Can work ,safely under short-term water immersion conditions
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger



Models

Cooling Method

Voltage Platform

Hardware

Power

Weight(kg)

HK-MF-48-40

Air cooling

48V

48V/40A

3.3KW

4.6kg

HK-MF-72-40

Air cooling

72V

72V/40A

3.3KW

4.6kg

HK-MF-108-32

Air cooling

108V

108V/32A

3.3KW

4.6kg

HK-MF-144-23

Air cooling

144V

144V/23A

3.3KW

4.6kg

HK-MF-312-10

Air cooling

312V

312V/10A

3.3KW

4.6kg

HK-LF-108-60

Air cooling

108V

177V/60A

6.6KW

8.5kg

HK-LF-144-46

Air cooling

144V

202V/46A

6.6KW

8.5kg

HK-LF-312-20

Air cooling

312V

450V/20A

6.6KW

8.5kg

HK-LF-540-14

Air cooling

540V

680V/14A

6.6KW

8.5kg


Product Parameters

HK-M series 3.3KW charger :

Voltage Platform 48V 72V 96V/108V 144V
Output Output voltage range 30~66V 50-99V 65~140V 90~195V
Output current 40A 40A 32A 23A
Output  power 3300W@220VAC 1600W@110VAC
Output Mode CC / CV
CV Accuracy ±1%
CC Accuracy ±2%
Ripple Voltage Coefficient 5%
Input Input  voltage range          AC 90~265V
Frequency 45-65Hz
Input current 16A
Power factor ≥0.99 more than half load
Effecificency ≥93%  full -load
Stand-by Consumption ≤5W
Low Voltage
Output
Output Mode Constant Voltage
Output Voltage 13.8V
Rated Current 5A
CV Accuracy ±2%
Output Power ≥62.5W
Ripple Voltage Coefficient 1%

HK-L series 6.6KW charger :
Voltage Platform 96V/108V 144V 312V 540V
Output Output voltage range 65~140V 90~195V 250~450V 350~680V
Output current 60A 46A 20A 14A
Output  power 6600W@220VAC  3300W@110VAC
Output Mode CV / CC
CV Accuracy ±1%
CC Accuracy ±2%
Ripple Voltage Coefficient 5%
Input Input  voltage range          AC 90~264V
Frequency 45-65Hz
Input current 32A
Power factor ≥0.98 more than half load
Effecificency ≥93%  full -load
Stand-by Consumption ≤5W
Low Voltage
Output
Output Mode Constant Voltage
Output Voltage 13.8V
Rated Current 5A
CV Accuracy ±2%
Output Power ≥62.5W
Ripple Voltage Coefficient 1%
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Efficiency Curve :
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger

Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger

Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Packaging & Shipping

Deligreen  new version HK-MF HK-LF series 48v 40a 1.8kw 3.3kw 6.6kw 60V 72V 96V EV on board battery charger


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided .
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger




Company Profile
Changsha Deligreen Power Co.,Ltd

Deligreen sales department is a young , fancy and hard working team.
1. 5-year verified Golden supplier
2. One-stop service: battery+BMS+active balancer+charger+EV cable.Make DIY batteries easier!
3.Quick delivery: Warehouse in Shenzhen,USA, Poland, Russia.
4. Honest, professional ,communicative and supportive sales consultant.

Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger
