Basic Info.
Model NO.
54.6V3A
Type
Lithium Ion Battery Charger
Charging Type
Electric Charger
Principle
Single-Shock Charger
Material
ABS+PC
MOQ
1PC
Sample
Free
Transport Package
Standard Export Carton
Specification
160*85*65mm
Trademark
ADDISON
Origin
China
HS Code
8504409990
Production Capacity
50000PCS/Week
Packaging & Delivery
Package Size
16.00cm * 8.50cm * 6.50cm
Package Gross Weight
0.500kg
Product Description

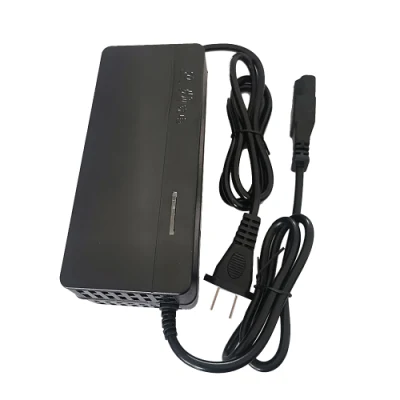

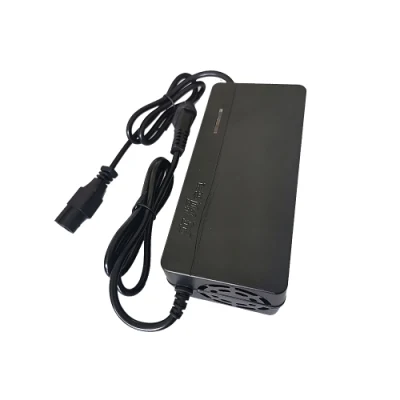

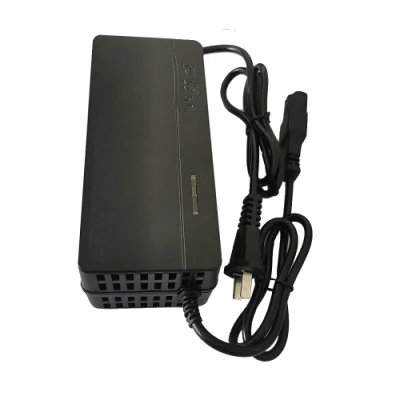

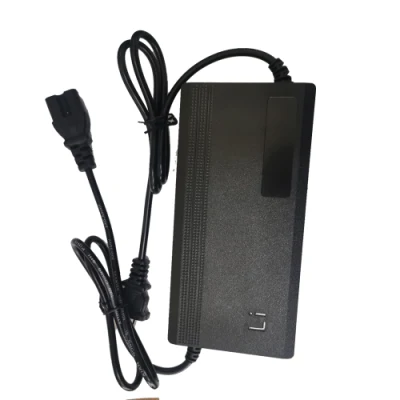

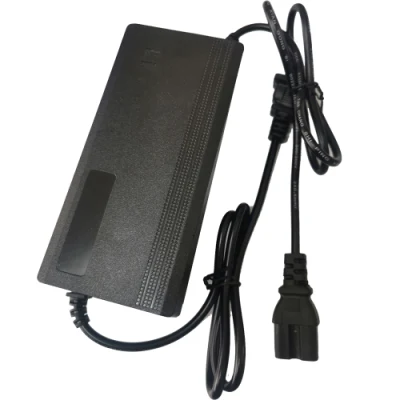

54.6V 3A Lithium Battery Charger Universal For 13s 48V 3 Wheels Electric Scooter Li-ion Battery Charger
1).Short-circuit protection,charger o/p current automatically when short-circuit.
2).Overload protection:Charger o/p current limited automatically when overload.
3).Reverse polarity protection:It will shut down when the wire is connected,charge DC fuse or remove the fault.
4).3-stage charging mode:CC(constant current), CV(constant voltage) and float stage.
5).Reliable, elegant, Small size, light, with cooling fan.
6).Charging state:TWO LED display.
7). Multiple plugs can be selected
| Input | 100-240VAC,50/60HZ | Input Plug | EU US UK AUS JP Korea Italy Brazil India South Africa |
| Output | 4.2v/cell 13S 54.6V 3A | Charge mode | CC--CV Mode |
| Led Indicator | Red--charging; Green--full charge | Protection | Over-current, Over-voltage, Short-circuit, Polarity reverse |
| Suitable Battery | Lithium Ion battery pack | Efficiency | >82% |
| Output connector | customized(as below) | Size & Weight | 160*85*65mm 0.5kg |
| Hi-Pot | 3000Vac/60S | MTBF | 50000hrs |
| Operating Temperature | -20ºC~ +50ºC | Storage Temperature | -40ºC~ +80ºC |
| Certification | CE FCC GS CB PSE KC SAA | Lead time | sample: 3-5 days Order: 12-15 days |
| Warranty | 3 Years | Package | 50*44*33cm 2pcs/ctn |
1).Short-circuit protection,charger o/p current automatically when short-circuit.
2).Overload protection:Charger o/p current limited automatically when overload.
3).Reverse polarity protection:It will shut down when the wire is connected,charge DC fuse or remove the fault.
4).3-stage charging mode:CC(constant current), CV(constant voltage) and float stage.
5).Reliable, elegant, Small size, light, with cooling fan.
6).Charging state:TWO LED display.
7). Multiple plugs can be selected
