12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger

Product Name: 12V/24V 30A High Frequency Fast Charger We are a factory specializing in high frequency, high power intelligent fast chargers for electric cars, forklifts, and telecom base stations.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
UVC11
Shell Material
Aluminium
Transport Package
Seaworthy Packing
Specification
283*120*81mm
Trademark
DK
Origin
China
HS Code
85044099
Production Capacity
2, 000, 000 PCS / Year

Product Description

Intelligent Li-ion Battery Charger- UVC11 1100W Series

12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger


APPLICATION:

All types of lithium batteries and new energy maintenance-free batteries are applied in the electric mobilities, such as:
Electric scooter/tricycle/balance bike/golf cart/drone/sweeper/robot/AGV/forklift/boat and so on.
12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger




CHARGING PRINCIPLE:

Two-transistor forward, 3-phase PID Controlling Intelligent Charging
12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger
Automatically stop after charge fully



CHARING CURVE:

12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger


Remarks: The specific charging curve for the lead-acid battery is available to customize upon the requirement.




General Specification:

Model No.:UVC11
Rated Volt Input Volt
(AC)
CC Lead Acid Ternary Polymer Li-ion LiFePo4
CV CV Strings CV Strings
12V 185-265V
/90-135V

50/60HZ
30A 14.70V 12.60V 3S 14.60V 4S
16.80V 4S 18.25V 5S
24V 30A 29.40V 25.20V 6S 25.55V 7S
29.40V 7S 29.20V 8S
36V 20A/25A 44.10V 42.00V 10S 40.15V 11S
46.20V 11S 43.80V 12S
48V 16A 58.80V 54.60V 13S 54.75V 15S
58.80V 14S 58.40V 16S
60V 15A 73.50V 67.20V 16S 69.35V 19S
75.60V 18S 73.00V 20S
72V 12A 88.20V 84.00V 20S 83.95V 23S
92.40V 22S 87.60V 24S
84V 10A 102.90V 100.80V 24S 98.55V 27S
105.00V 25S 105.85V 29S

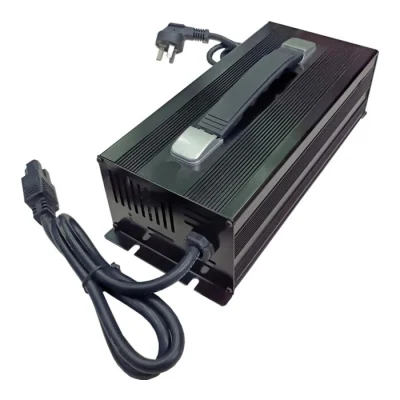

Mechanical characteristic:

Shell material: Aluminum
Dimension: L*W*H= 283*120*81mm
Input socket: meets IEC standard
AC wires: 1.2m length
DC wires: 1.2m length
Net Weight: 3.0 Kgs




FEATURES:
Circuit and Hardware
* High-performance circuit with all-digital switching power supply design, the stability and consistency of the product is excellent.
* Fast response hardware protection of over-current, over-voltage, and reverse connection.
* Three digital temperature control sensors monitor the internal and external temperature of the charger in real-time.
* Complete protection function covering: Over-Temperature, Reverse Connection, Short-Circuit, Under-Voltage, Over-Voltage. Abnormal State Auto-recovery.
* Low power consumption design, the power of no-loading5W.
* Communication Interface: Can, RS485, UART, or other interfaces at optional.
* Led indicator lights display working status, charging power, and fault status in real-time

Rich Software Function
* All-digital microcomputer intelligent detection and control system, fast response speed and accurate curve control.
* Double-loop cascade PID controls the charging current and voltage, and the charging curve control is flexible and precise.
* Innovative fault self-checking function.
* Charging self-learning function, adjust the charging parameter according to the battery condition.
* Power-off memory function, abnormal state auto-recovery.
* Conform to the charging characteristic curve of various batteries.
* Supporting online upgrade and remote communication, optional functions such as Lock, Charge Control, JTAG and DEBUG .

Efficient heat-dissipating structure design

* Compact design with a lightweight, easy to use
* CGS fan cooling technology and unique internal structure design allow heat to be quickly discharged and enhance stability.
* Durable Aluminum shell design with excellent heat dissipation.

12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger



12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger




12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger



PACKING

12V/24V 30A Electric Car/Forklift/Stacker UPS Power Supply Telecom Base Station High Frequency High Power Intelligent Fast Charger
