Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger

Get the Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger from our factory. High-quality and reliable charging for your electric vehicle.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Charger Standard
  • Application
  • Product Parameters
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
ZHEV-DC60-Y
Warranty
24 Months
After-Sales Service
Technical Support Offered Within 24 Hours
Input Voltage
285V AC-475V AC
Input Voltage Type
3 Phases
Power Factor
Min 0.95
AC Input Connection
3p+N+PE
Transport Package
Plywood Box
Trademark
ZHONGHE
Origin
Qingdao, China
HS Code
8504409999
Production Capacity
800/Month

Product Description

Product Description



Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger

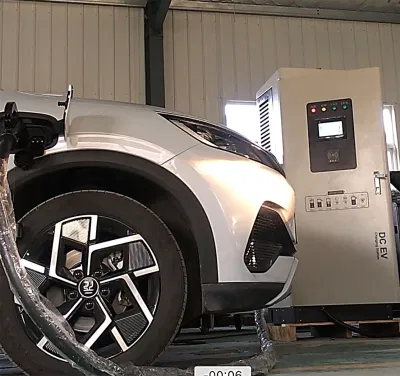

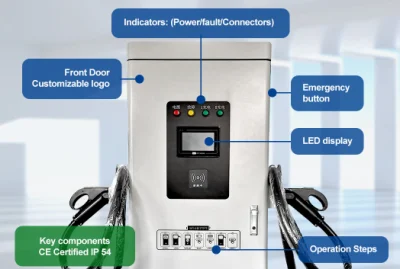

Detailed Photos

Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger

Charger Standard

Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle ChargerQuick DC 50kw 60kw Car Battery EV Charger Electric Vehicle ChargerQuick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger

Application

Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger

Product Parameters

MODEL ZHEV-DC30-Y ZHEV-DC40-Y ZHEV-DC60-Y ZHEV-DC80-Y
AC Input
Input Voltage 285VAC - 475VAC
Input Voltage Three phases
AC Input Connection 3P+N+PE
Max. Input Current 57A 76A 115A 152A
Frequency 50Hz~60Hz
Power factor ≥0.99
DC Output
Output Power Range 30KW 40KW 60KW 80KW
Output Voltage Range 200V-750V
Output Current 0-100A 0-134A 0-200A 0-268A
Voltage Accuracy ≤±0.5%
Current Accuracy ≥30A±1%;
Efficiency ≥93%
User Interface & Control
Display 7 inch touch screen
Support Language  English
Push Buttons Emergency Stop
User Authentication RFID System ISO/ICE 14443A/B
Display Information Charging process and status / Alarm and warning message
Communication
External Ethernet,3G/4G, WIFI
Internal CAN bus/ RS485
Environmental
Operating Temperature  -40~85ºC;25ºC(type);
Humidity 20~95RH%;25RH%(type)
Altitude ≤6000 feet(2000m)
IP level IP54
Cooling Method Forced air
Mechanical
Net Weight 160kg 160kg 180kg 180kg
Cable Length 5meter
Dimension(W*D*H) 550*650*1850mm 550*650*1850mm 550*650*1850mm 550*650*1850mm
Warranty 2 years

Company Profile

Quick DC 50kw 60kw Car Battery EV Charger Electric Vehicle ChargerQuick DC 50kw 60kw Car Battery EV Charger Electric Vehicle ChargerQuick DC 50kw 60kw Car Battery EV Charger Electric Vehicle ChargerQuick DC 50kw 60kw Car Battery EV Charger Electric Vehicle ChargerQuick DC 50kw 60kw Car Battery EV Charger Electric Vehicle Charger

FAQ

Q:   Are you the factory or trading company?
A:   We are factory with more than 20 years in the field of DC power supply solution,  traction power supply and new energies. We warmly welcome you for the visit.

Q:   How is the delivery time?
A:   Generally, the delivery time between 7-30 days after getting client's payment.
       For accurate info depends on the products and the quantity, we can make further communication on this.

Q:  Do you have MOQ requirements?
A:   MOQ is 1 set for most of the products, only MOQ for 7KW, 11KW, 22KW ev   charger is 10 sets.

A:   How long is your warranty time?
Q:   We provide 2 years warranty for our clients.

Q:   Can you provide customized service?
A:    Yes. we have been getting involved with the OEM and ODM projects since 2004.
       So that we can provide professional customized service for our clients.

Q:   Do you have after sales service?
A:    Yes, we have the after-sales service team.
       Our after-sales engineer Can give the support and instruction by video or phone call while needed.


Q:   Do you make the test after finishing production?
A:   Yes, our production engineer team will do the test while goods finished, and we will prvoide the test info to clients for reference before delivery.
