3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus

Deligreen 3.3kw 6.6kw Charger for Electric Car Forklift Bus. Factory direct Lipo, Life, Limn, Lead Acid Battery Chargers. Wide voltage range. Top quality.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Contact Us
Overview

Basic Info.

Model NO.
3.3kw charger
Waterproof
IP67
Efficiency
94%
with Can Bus
or Enable
on off Board
with 12V Inside Power Supply
Obc
Pfc
with Can
Canbus / Enable
Output Power
1.8kw 2 Kw 3.3kw 6.6kw 9.9kw 13kw
Voltage Platform
48V 72V 96V 144V 312V
Warranty
3 Years
Transport Package
Bubble Bag+Outer Carton
Specification
150*240*156MM
Trademark
Deligreen charger
Origin
Zhejiang, China
Production Capacity
200 Piece/Pieces Per Month

Product Description

Deligreen Q2 series OBC EV battery charger can offer you :


1. Enable or with canbus (125K 250K 500K are all available )
2. With free cables (AC,DC & Signal port ) to save your money and time
3. If you want to charge by charging gun , we can add CC CP signal with free
4. Warranty : 3 years
5.Output power : 1.5KW / 2KW / 3.3KW / 6.6KW /9.9KW /13KW


3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus

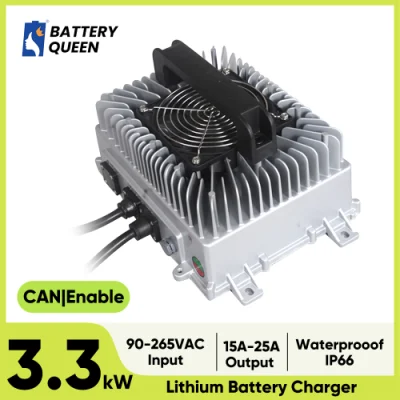

Output Reverse Connect Protection 3.3KW High Efficiency PFC Battery Charger

Product Name
3.3kw charger Deligreen On Board Level IP67 3.3kw 6.6KW 9.9KW 13KW OBC EV Solar Electric Car Battery Charger
Model:
1.5kw 1.8 kw 3.3kw 6.6kw 9.9kw 13kw
Waterproof
IP66 / IP67
Input voltage
90v-265v AC
With canbus or not
With can or enable are all available
Battery Type
Lifepo4 ,ncm , LTO , lead acid battery are all available
Parts with charger
Input / Output connector and cables , Indicator, Anti-walking line, Auxiliary power 12V (need marked),Temperature control (only for lead acid battery)
With CC-CP
yes , depends on your requirements
Package
Standard export caton

3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus

Buyer attention: In order to confirm if our charger is suitable for your battery pack, please send the following information to us by email:

(1) battery type:

(2) the number of cells in series:

(3) the capacity of the battery pack(AH):

(4) The maximum charge voltage:

(5) AC input volt:

(6) with CAN or enable:

(7) if with CAN, tell us the BMS brand: Our charger can work with EMUS, Orion, and many other BMS made in China like Ligoo BMS.

AC cable and DC cable: matching socket without AC/DC cable.

6 Battery over heat protection: Yes

3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus


Deligreen DLG charger--variable frequency pulse charger series can be used for lead-acid batteries ,lithium batteries, Ni-mh battery, ni-cad battery and other energy storage battery charging.
Apply to electric vehicles:sightseeing car,club car, golf cart, patrol car, electric cleaning equipment, sweeper, lawn mower;
Material handling equipment: forklift,lift truck, pallet truck, stacking truck,lift; Electric boats,ATV,Kart,Vans,cars and buses;
Special categories: Power sector, Marine, aerospace, military, etc.



3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus3.3kw 6.6kw Deligreen Charger 72V96V120V144V164V288V Lipo, Life, Limn Lead Acid Battery Chargers for Electric Car Forklift Bus
