Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter

Get the top-rated Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter direct from the factory. Shop now for the best deals on reliable battery chargers.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Application scenarios
  • Product size
  • Other recommended products
Overview

Basic Info.

Model NO.
1200w
Size
1/2 A
Socket Type
For Australia/New Zealand
Recyclable
Non-Recyclable
Color
Yellow
Transport Package
Neutral
Specification
286*159*128
Trademark
Spiderway
Origin
China
Production Capacity
50000PCS/Week

Product Description

Product Description

60V 15A Lithium Battery Charger, 1200W Output Power, Pre-charge, CC CV Automatic Charging

Brief Description:

60V 15Amps intelligent battery charger is designed for lithium or lead acid battery, input with single 110 or 230Vac and rated output voltatge is 60 Volt 15 amps. Smart max charging voltage is 73.5V for lead acid type batteries and 73V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.



Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110 / 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.



Technical Specs.:

1) Dimensions(LxWxH): 260 x 150 x 90 mm

2) Net weight: 4.5 KG

3) Max charging voltage(CV): 73 / 73.5 volts

4) Floating voltage: custom-made

5) Max output current (CC): 15 amps

6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Product Parameters



Output series: 1,200W       Size: 260×150×90 mm       Net weight: 4.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching



AC Input:

110 / 230V



Frequency:

47~63HZ



1260L 12V LiFePO4 Battery   14.6V 60A CC5~8%
1260 12V Lead-acid Battery 13.5V 14.7V 60A CC20%
1460 14V AGM Battery 13.5V 14.4V 60A CC20%
1660L 16V LiFePO4 Battery   18.2V 60A CC5~8%
2435LM 24V Li-MnO2 Battery   29.4V 35A CC5~8%
2435L 24V LiFePO4 Battery   29.2V 35A CC5~8%
2435 24V Lead-acid Battery 27.6V 29.4V 35A CC20%
3620LM 36V Li-MnO2 Battery   42V 20A CC5~8%
3620L 36V LiFePO4 Battery   43.8V 20A CC5~8%
3620 36V Lead-acid Battery 41.4V 44.1V 20A CC20%
4818LM 48V Li-MnO2 Battery   54.6V 18A CC5~8%
4818L 48V LiFePO4 Battery   43.8V 18A CC5~8%
4818 48V Lead-acid Battery 55.2V 58.8V 18A CC20%
6015L 60V LiFePO4 Battery   73V 15A CC5~8%
6015 60V Lead-acid Battery 67.5V 73.5V 15A CC20%
7213L 72V LiFePO4 Battery   87.6V 13A CC5~8%
7213 72V Lead-acid Battery 81V 88.2V 13A CC20%
8411 84V LiFePO4 Battery   102.2V 11A CC5~8%
8411L 84V Lead-acid Battery 94.5V 102.9V 11A CC20%
9610 96V LiFePO4 Battery   116.8V 10A CC5~8%
9610L 96V Lead-acid Battery 108V 117.6V 10A CC20%
Note: customized input / output / plug type / connectors are available.

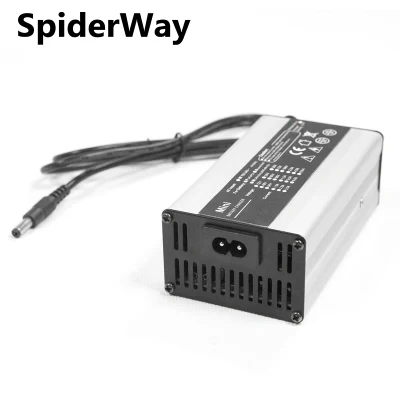

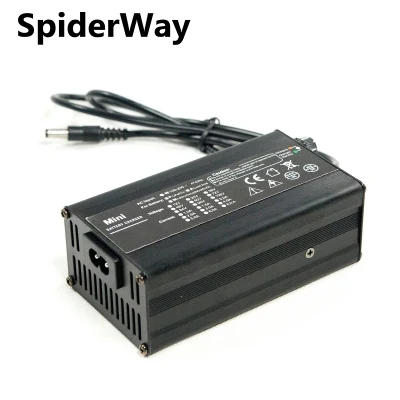

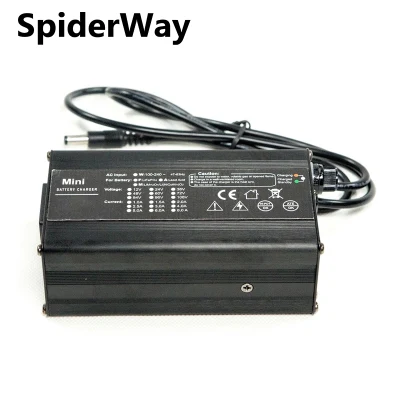

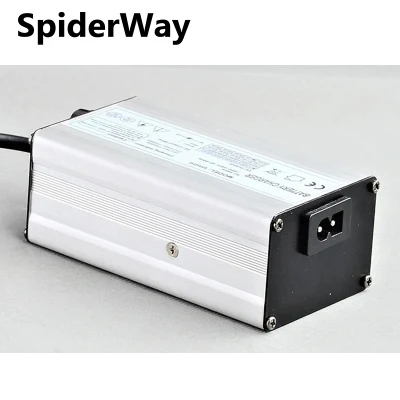

Detailed Photos



Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter



Application scenarios


Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter

*Output plug display

Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter

Product size

Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter

Other recommended products
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter


In addition to lithium iron phosphate battery chargers, our company is also mainly engaged in lithium battery products, new energy lifting platforms, orchard picking trucks, motor controllers, forklift power products, and a series of supporting facilities.https://ydmachinery.en.made-in-china.com/product-group/QqsaotpDhuWZ/lithium-battery-catalog-1.html
If you are interested,
please click the link below or jump directly to the store to choose your suitable business opportunity product.
https://ydmachinery.en.made-in-china.com/product-list-1.html

Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter

Home High Quality 12V 24V 36V 48V 72V 80V /Felipo4/ Battery Charger for Forklift, Electric Car, Electric Bike Scooter
