Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2

Looking for a Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2? Look no further! We are a factory specializing in electric car chargers.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
Overview

Basic Info.

Model NO.
AG-EVDCC3120
Charge Method
Quick Charge
Current
200A+200A
Power
60kw/120W/180kw/240kw
Output Connector
CCS/Chademo/Gbt
Phase
3-Phase+N+PE
Service
OEM & ODM
LCD Display
7" Touch Screen
IP Grade
IP54 (Outdoor)
Output Voltage
DC 150V-1000V
Technical Support
Online on Time
After-Sales Service
24/7
Type
Fast EV Charging Station
Certification
CCC, CE, TUV, RoHS
Warranty
12 Months
Transport Package
by Sea, by Air
Specification
700*600*1900mm
Trademark
OEM
Origin
Zhejiang
HS Code
8504409999
Production Capacity
2000sets/Month

Packaging & Delivery

Package Size
76.00cm * 40.00cm * 190.00cm
Package Gross Weight
320.000kg

Product Description

Product Description

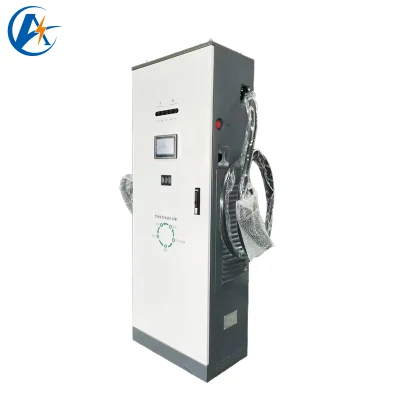

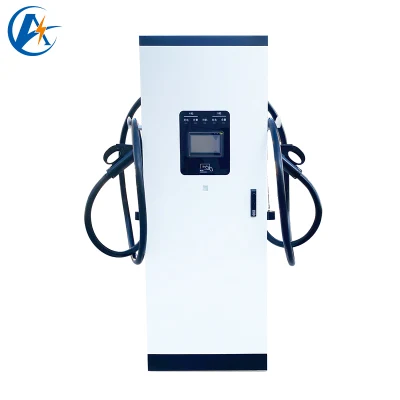

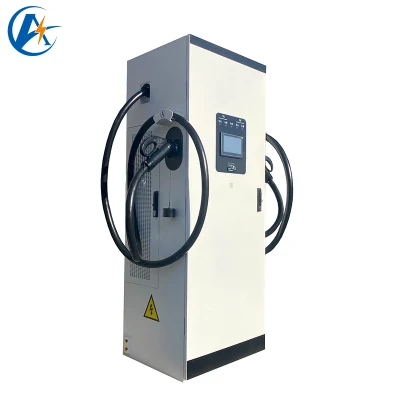

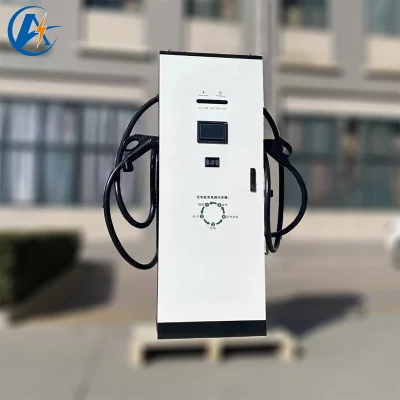

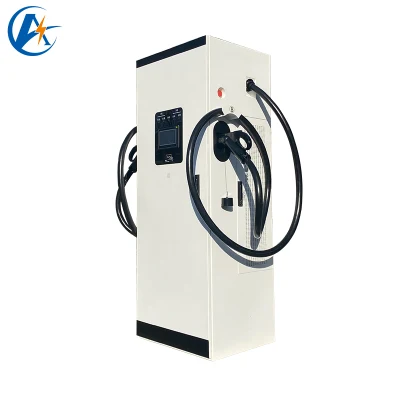

60kw 80kw 120kw 160kw 180kw 240KW DC EV Charging Station

with CCS Connector for Commercial OCPP1.6  AC Electric Vehicle Charger
Supported standards: European standard, national standard, American standard, Japanese standard
Up to: 2 DC guns
Maximum power: 120kW DC
Charging module: 20kW or 30kW or 40kW
Charging gun: Any 2 DC guns are grouped against each otherf

Key Features
The charging current of the DC charging station is large, ten times or even dozens of times the conventional charging current, and the charging speed is very fast, generally in 30 minutes for the electric vehicle to fill 80% of the charge, and then, from constant current charging to constant voltage charging to protect the battery, and charge the battery a little fuller .

DC charging station application place:
Special parking lot in the field of public service; Residential area; Enterprises and institutions; Urban public parking lots ; intercity highway service areas; shopping mall ;Hotel office building
  Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2 Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2
Specification  Model 60kW, 120kW, 160kW ,82kW , 142kW, 182kW
AC Nominal Input Phases/Lines 3 phase+ neutral + PE
Voltage 304~456V AC
Frequency 45-65Hz
Output Power 60kW, 120kW,160kW ,82kW , 142kW, 182kW
Connector-single gun CCS2, GBT, CCS1, CHAdeMO
Connector-two gun CCS2+CCS2, GBT+GBT, CCS2+GBT ,CC1+CCS2 ,CCS2+CHAdeMO
Connector-three gun CCS2+CCS2+AC type2, CCS2+GBT+AC type2, CCS2+CHAdeMO+AC type2
Voltage 50VDC-1000VDC
MAX Current 180A+180A, 180A +125A, 200A+200A, 250A+250A, 200A+250A, 200A+125A
Cable Length  5m
Electrical Parameter Power Factor ≥0.99
THD Value ≤5%
Stable Voltage Accuracy ≤±0.5%
Stable Current Accuracy ≤±1%
Efficiency ≥94%
Structure Design Module Number 30kW+30kW
Installation Method Vertical installation of ground
LED Indicator Green/Yellow/Red color for different states

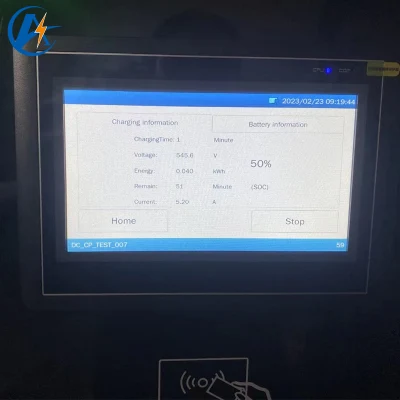

Display One 7'' Daylight readable Color Touch Screen
Emergency Stop Button Yes
Payment Method RFID Card/Phone APP with backend
Communication Charger v.s. Backend Ethernet/GPRS/4G communication
Communication Protocol OCPP1.6J
Environmental index Operating Temperature  -20ºC ~ +55ºC
Working Humidity 5% ~ 95% no condensation
Working Altitude ≤2000m
Protection Grade IP54
Application Site Indoor/Outdoor
Cooling Method The fan cooling
Security Protection Multiple Protection Over/Under voltage protection,
Overload protection, Short circuit protection, Over/Under temperature protection,
Grounding protection, Surge protection,
Leakage protection
Warranty 1 year
Package Information Product Dimension(W*D*H) 700*400*1900mm, 700*600*1900mm
Net Weight 260kg, 295kg, 320kg, 300kg, 355kg, 380kg
External Packing Wooden case

Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2 Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2 Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2 Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2 Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2 Fast DC EV Car Charger for Electric Charging Station with CCS1 CCS2
