Basic Info.
Model NO.
EV-7KW
Output Power Rating
7kw/11kw/22kw
Output Current
32/16/32A
Cable Length
5m
Network Connection
RFID/Plug and Play
Connector Type
Type 1, Type 2
Operating Temperature
~-40c to +45c
Protection Level
IP66
Gross Weight
4.5kg
Packing Size
460*390*160mm
Name
Electric Vehicle Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
12 Months
Transport Package
Carton, Pallet
Specification
K005
Trademark
Keyuan
Origin
China
HS Code
8504409990
Production Capacity
5000set Per Month
Packaging & Delivery
Package Size
46.00cm * 39.00cm * 16.00cm
Package Gross Weight
5.000kg
Lead Time
30 days (1 - 2000 Pieces)
To be negotiated ( > 2000 Pieces)
To be negotiated ( > 2000 Pieces)

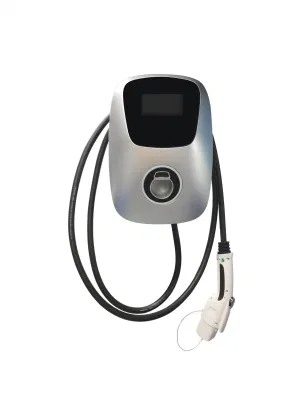

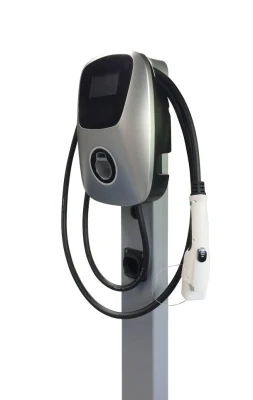

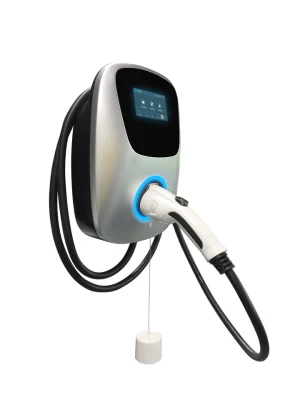

Product Description
Products Description
| Item Name | Waterproof Electric Vehicle Type1/2 Car 7/11/22KW AC EV Charger |
| Power | AC 7KW/11KW/22kW |
| Rated Voltage | AC 220V/380V±20% |
| Efficiency | 50-60Hz |
| Output Power Rating | 7KW/11KW/22kW |
| Output Current | 32/16/32A |
| Cable Length | 5m |
| Network Connection | RFID/Plug and play |
| Connector Type | Type 1,Type 2 |
| Protection Level | IP66 |
| Operating Temperature | ~-40C to +45C |
| Product size | 368*256.5*130mm |
| Package size | 460*390*160mm |
| Net weight | 4KG |
| Gross weight | 4.5KG |
Maintenance method: The system adopts an open cover maintenance method and is reliably installed on the wall Harmonic current ≤ 3% (under rated operating conditions) Stable current accuracy ≤ ± 0.5% refer to NB/T33001-2018 Voltage stabilization accuracy ≤ ± 0.5% refer to NB/T33001-2018 Ripple coefficient ≤ ± 0.2% refer to NB/T33001-2018 Current sharing ≤ ± 3% 10%~100% load range On the AC or DC side, the peak value of the impulse current when the switch is turned on should be limited to 10% of the maximum rated current of the charger (station) Sound noise ≤ 65dB (A) (at an ambient temperature of 25 ºC under rated operating conditions) The temperature rise shall comply with the requirements of GB18487-2001 and NB/T33001-2010 standards, and the temperature rise of the charging interface shall comply with the provisions of the national standard GB/T234.1-2014 DC output voltage Range 250Vdc~750Vdc, error ± 1Vdc Output DC current, single gun maximum output current ≤ 50A DC screen voltage drop ≤ 400mV (ambient temperature is 25 ºC)
