Basic Info.
Model NO.
TE4-0249D
Interface
Clip
Color
OEM
Input Voltage
110V /230V
Output
6V /12V
Efficient
>75%
Charging Voltage
600mA
Ambient Temp
-10-40
Housing Protection
IP65
Charger
Float Charger
Warrenty
1 Year
Transport Package
Color Box
Specification
Color box size: 10x6x10CM
Trademark
TONNY
Origin
China
HS Code
8504401990
Production Capacity
200000PCS
Packaging & Delivery
Package Size
30.50cm * 11.90cm * 11.70cm
Package Gross Weight
3.000kg
Product Description

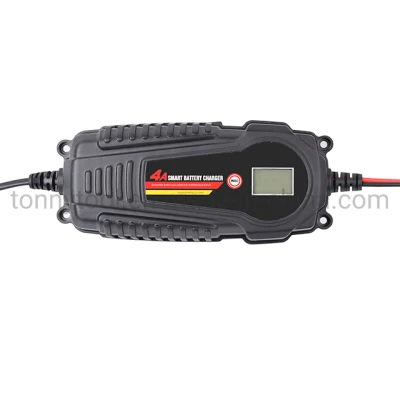

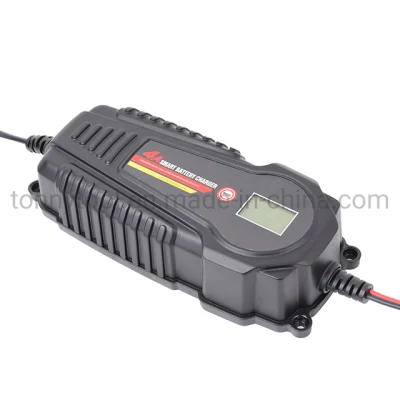

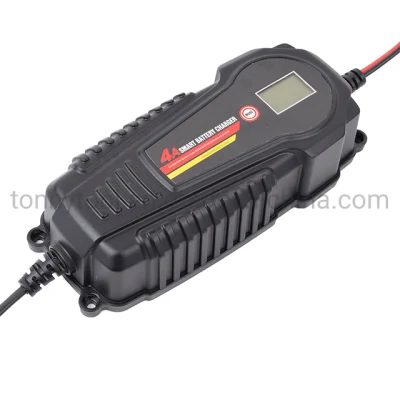

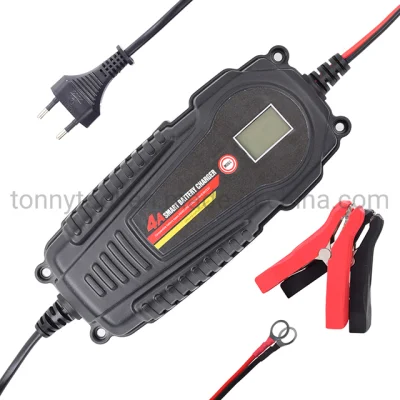

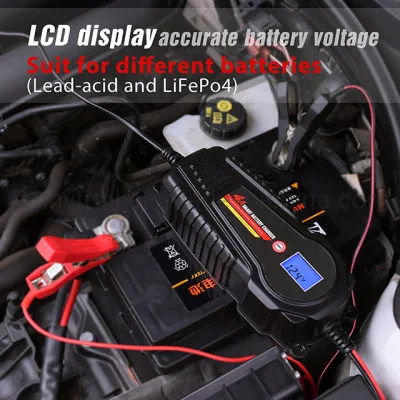

4A Smart Battery Charger/Maintainer for 12V LiFePO4 Lithium & Lead Acid Batteries
-With short circuit and overtemp protection, overcurrent and overvoltage protection;
Description
Dimension
ABOUT US
Tonny Electric & Tools Co., Ltd
OEM
Functional/Structural Design, Packaging customization, Accept small quantity order
CERTIFICATES
We have many certificates, such as cETL, PSE, GS, TUV, CE, RoHs, PAHs, REACH. And we have 200+ patents and 600+ different kinds of high quality products
- For use with 12V Lithium batteries, 6V/12V Lead acid batteries;
- LED charging indicator light & Reverse connection LED light;
- Intellect control by microchip:
-With short circuit and overtemp protection, overcurrent and overvoltage protection;
| Model | TE4-0249D |
| Battery Type | 12V LiFePO4 batteries, 6V/12V STD,GEL,AGM |
| Rated AC Input Voltage | AC105-125V,60Hz or 220-240V, 50Hz |
| Max Output Voltage | 7.2V±0.3V, 14.4V±0.3V |
| Charging Current | 4A max |
| Activated Voltage | 3V/7.5V |
| Protection | Overheat |
| Short Circuit | |
| Reverse Polarity | |
| Overcharge | |
| Housing Material | ABS |
| Ingress Protection | IP65 |
| Color | Customized |
| Certificate | cETL /CE-EMC/CE-LVD/ROHS |
| Weight | 800g |
| Size | 246x93 x 49 mm |
| Plug Standard | EU/AU/UK/US |
- Two battery type options: 6V/12V Lead Acid and 12V Lithium(LiFePO4).
- Multi-level safety protection: spark proof, reverse polarity, overcharging, short-circuit, over-temperature, and dust resistance. With bad battery identify and 12V Lithium(LiFePO4) battery 0V activation function.
- Perfect for charging all 6V/12V lead-acid, flooded, sealed maintenance free batteries (AGM and gel cell) and 12V-Lithium(LiFePO4) up to 120Ah, Safely maintain all types of motorcycle, automotive, marine, RV, Boat, ATV, powersport, lawnmower & garden etc.
- Intellect control by microchip.
- Fully protection for reverse polarity, short circuit, overcharge, over-temp, etc.
