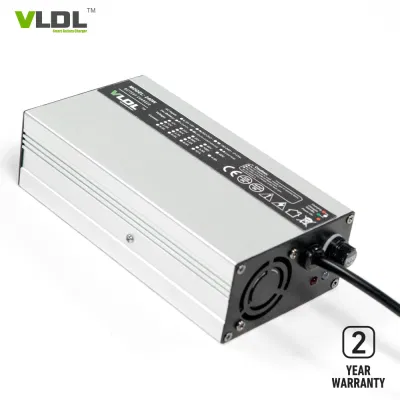

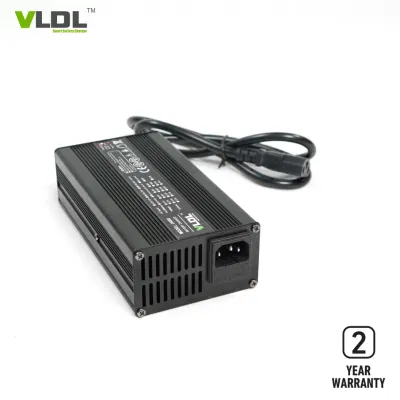

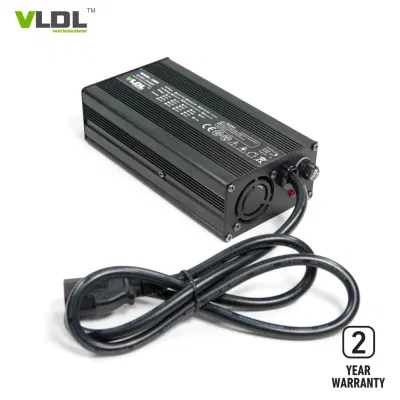

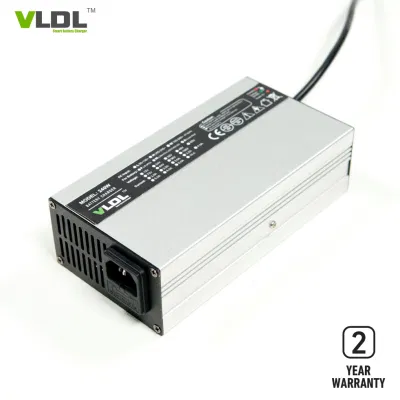

36V 5A 240W Smart Battery Charger for E-Bikes/Scooters/Mobility/Motorcycles

Get high-quality 36V 5A 240W smart battery charger for e-bikes, scooters, mobility, and motorcycles from our factory. Fast and efficient charging guaranteed.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
VL3605
Net Weight
1.0 Kg
Color
Silver or Black
Lead Time
5-7 Days
Max Charging
43.8V or 44.1V
Charging Method
4 Steps: Pre-Charge, Cc, CV, Floating
Warranty
2 Years
Applications
Smart Charge E-Mobility/Scooter
Transport Package
Carton
Specification
170*90*50 mm
Trademark
VLDL
Origin
China
Production Capacity
100000PCS/Month

Product Description

36V 5A 240W Smart Battery Charger For E-Bikes/Scooters/Mobility/Motorcycles

Descriptions:

Lead acid battery charger 36V 5A was designed for Electric Mobility / Scooters. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 44.1V for SLA/GEL/AGM battery types. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.

Specifications:
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 36V 5Amps
Max charging voltage: 43.8V / 44.1V
Dimensions(LxWxH): 170 x 90 x 50 mm
Net weight: 1.0 KG
Housing: Aluminum
Color: Silver or Black

Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.

Smart and Automatic 4 Steps Charging.

Aluminum Casing, Light Weight, Portable.

High Quality, Factory Price.

Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Applications:

Automatic Charging For 36V Lead-acid / SLA / AGM / GEL Batteries.

Suit for E-mobility, E-scooters, E-motorcycles.

Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.

Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.


Related Models of 240W Charger:

Output series: 240W     Size: 170×90×50 mm     Net weight: 1.0 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

85~264V



Frequency:

47~63HZ



VL1210L 12V LiFePO4 Battery   14.6V 10A CC5~8%
VL1210 12V Lead-acid Battery 13.5V 14.7V 10A CC20%
VL2407LM 24V Li-MnO2 Battery   29.4V 7A CC5~8%
VL2407L 24V LiFePO4 Battery   29.2V 7A CC5~8%
VL2407 24V Lead-acid Battery 27.6V 29.4V 7A CC20%
VL3605LM 36V Li-MnO2 Battery   42V 5A CC5~8%
VL3605L 36V LiFePO4 Battery   43.8V 5A CC5~8%
VL3605 36V Lead-acid Battery 41.4V 44.1V 5A CC20%
VL4804LM 48V Li-MnO2 Battery   54.6V 4A CC5~8%
VL4804L 48V LiFePO4 Battery   43.8V 4A CC5~8%
VL4804 48V Lead-acid Battery 55.2V 58.8V 4A CC20%
VL6003L 60V LiFePO4 Battery   73V 3A CC5~8%
VL6003 60V Lead-acid Battery 67.5V 73.5V 3A CC20%
VL72025L 72V LiFePO4 Battery   87.6V 2.5A CC5~8%
VL72025 72V Lead-acid Battery 81V 88.2V 2.5A CC20%
Note: customized input / output / plug type / connectors are available.


Certificates:
36V 5A 240W Smart Battery Charger for E-Bikes/Scooters/Mobility/Motorcycles
Factory Pictures:
36V 5A 240W Smart Battery Charger for E-Bikes/Scooters/Mobility/Motorcycles

Battery Knowledge

Q. What do the abbreviations MF, GEL and AGM mean?Certifications:
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.

Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?

A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.


Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger's type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don't forget the charger.
