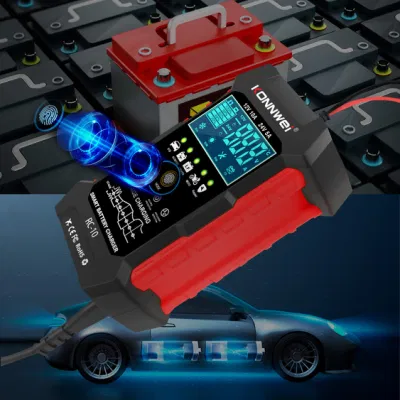

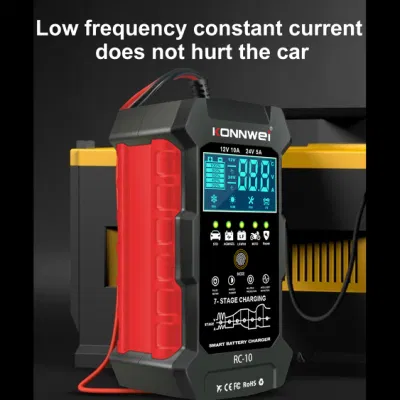

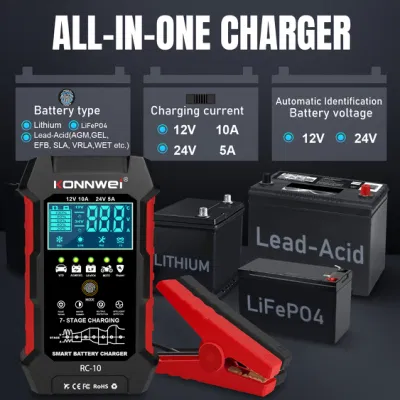

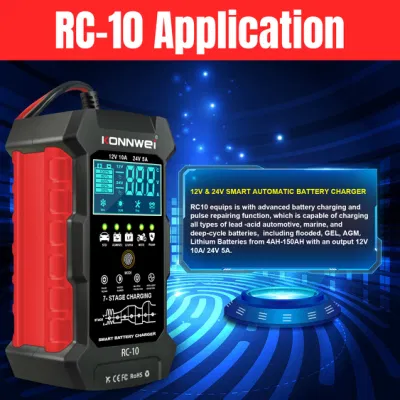

KONNWEI RC-10 12V 10A & 24V 5A SMART AUTOMATIC BATTERY CHARGER & PULSE REPAIR TOOL Konnwie battery charger RC-10 Model is with 10AMP QUICK CHARGER: 12V 10-Amp and 24V 5-Amp 7-stage quick battery charger, charging speed is much faster than 8-Amp or 5-Amp automatic chargers. Charge or repair all 12-volt and 24volt lead-acid automotive, marine and deep-cycle batteries including AGM, GEL, SLA, Flooded in cars, trucks, SUVs, motorcycles, lawn mowers, boats marine, etc. NEW REPLACEMENT AVAILABLE FOR ANY QUALITY ISSUE. CHARGING PROTECTION: Smart control, temp compensation in hot climates and under-charging in cold climates, reverse protection, cooling system, overcurrent, fireproof material, overvoltage, short circuit. Trickle charger with multiple protection ensure the safety charging at anytime anywhere. No worries! HIGH-EFFICIENCY PULSE REPAIR: Automatically detects battery sulfation and acid stratification, take newest pulse repair function to restore lost battery performance for stronger engine starts and extended battery life. Note: can not activate or charging totally dead batteries. VISUALIZED CHARGING: Large LCD display the charging and battery status; charge voltage and current, inside temperature, charge percentage, summer mode, winter mode, etc. More convenient to use. PLUG AND PLAY: no complicated steps, just plug and charge, stay at home and charge your batteries on your own. All-in-one battery solution as battery charger, battery maintainer, trickle charger, plus battery desulfator. The must-have tool for your garage. FLOAT/TRICKLE CHARGE: Switch to float/trickle charge mode to maintain batteries over the winter: 1, Choosing corresponding modes(STD/AGM,GEL/WET/MOTORCYCLE) to fully charge the battery, screen display "FUL" 2, Then switch to "MOTORCYCLE" mode will auto-enter trickle charging mode to keep batteries stay charged for a long time. RC10 equips is with advanced battery charging and pulse repairing function, which is capable of charging all types of lead -acid automotive, marine, and deep-cycle batteries, including flooded, GEL, AGM Batteries,Lithium Batteries from 4AH-150AH with an output 12V 10A/ 24V5A. RC10 Battery Charger can charge power for all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, Lithium iron phosphate battery (LiFePO4) etc Please Select the battery charge option from the main menu. The RC10 will automatically charge the battery with 7stages outputand keep it at a trickle current at last, so no need to worry about the overcharge or overheat issues. RC-10 Battery Charging Tester is also named as alternator ripple voltage test , which is to check and analyze the vehicle battery charging system, including generator, rectifie, rectifier diode, etc., thus to find out whether the output voltage of the generator is normal , the rectifier diode works properly and the abnormal. it will lead to over charge or incomplete charge of the battery, thus cause quick damage to the battery and greatly shorten the life of other loaded appliance. Operation : Step1 , Connect the red clamp to battery positive pole, black to negative pole. Reverse connection will not damage battery but not able to charge or repair; Step2 , Connect the KW520 power side to A/C supply 50/60hz 110-230V; Step3, Select the battery charge option from the main menu. The KW520 will automatically charge the battery with 7-stages output, and keep it at a trickle current at last, so no need to worry about the overcharge or overheat issues. RC-10 Battery Repair tool owns battery repair function to fix the battery 's aging issues, capable of detecting battery sulfation and acid stratification to restore lost battery performance by using pulse voltage and current with certain frequency. It owns battery repair function to fix the battery 's aging issues, capable of detecting battery sulfation and acid stratification to restore lost battery performance by using pulse voltage and current with certain frequency. The operations steps are as below: Notice : Repair function can not be used with battery connected with vehicle , otherwise the pulse voltage will damage the vehicle electronic components. Step1, Connect the red clamp to battery positive pole, black to negative pole. Reverse connection will not damage battery but not able to charge or repair. Step2, Connect the KONNWEI KW520 power side to A/C supply 50/60hz 110-230V. Select the "Battery Repair " from the main menu , the unit will automatically generate the pulse current and voltage to fix the battery and increase its performance. Battery charger specification: AC input: 100-240V/50-60Hz Output: Voltage 12V Output: Current 10A Output Volt No Load: 13.8V Minimum Start Volt: >5.0V Input Power with Load: Max 150W Input Power No Load: 5W Cooling: Fan Charging Capacity Range :4AH-150AH Emperature Compensation:Yes, Winter & Summer Mode Compatible Battery Type: All types of Lead-acid batteries, agm gel efb battery , lithium battery. Battery charge and repair operation. Package Contents: * KONNWEI RC-10 battery charger & repair tool * Multi-language user manual * Charging Cable (4 Choices:AU ,EU ,USA ,UK plug) * Retail Box Technical Specifications: AC input :100-240V/50-60Hz Output Voltage: 12V 24V Output Current :10A & 5A Output Volt No Load: 13.8V Minimum Start Volt: >5.0V Input Power with Load :Max 150W Input Power No Load :5W Cooling: Fan |
