Product Description

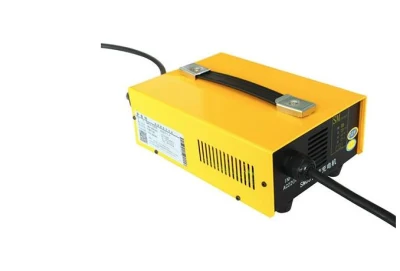

Benergy Charger is specially for Lithium Ion Battery pack. The working mode of our charger is CC/CV (constant current/constant voltage) mode.
73V 10A Parameter Table:
| Product Type | Lithium Iron Phosphate Battery Charger |
| Brand Name | Benergy |
| For Battery Pack | 60V (20S) Lifepo4 Battery Packs |
| Charge Voltage | 73V |
| Charge current | 10A |
| Size | 288×162×94mm (L,W, H) |
| Weight | 4300g±50g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Warranty | 1 Year |
| OEM/ODM | Yes(Accepted) |
Main product specification:
| Max.output power | Input voltage | Output voltage | Combined regulation | Output current | Combined regulation |
| 730W | 230Vac | 73V+/-0.2Vdc | +/-0.2V | 10A | +/-3A |
Input characteristic:
| No. | Item | Technical specification | Remark |
| 1 | Rated input voltage | 230Vac | 230Vac |
| 2 | Input voltage range | 180 ~ 240Vac | |
| 3 | AC input voltage frequency | 50~60 Hz |
Output characteristic or charge stages
| No. | Item | Technical specification | Remark |
| 1 | CC(constant current) | ≤73Vdc, 10A | |
| 2 | CV(constant voltage) | 73Vdc, 10A↓ | |
| 3 | Float stage | No | 5%CC |
| 4 | Power efficiency | ≥85% | Vin=230Vac,rated load |
Protection characteristics
| No. | Item | Technical specification | Remark |
| 1 | Over voltage protection | Yes | |
| 2 | Software over voltage protection | The charger software limits the maximum output voltage to a level suitable for the connected battery system. | |
| 3 | Thermal protection | Yes | |
| 4 | Current limiting protection | Yes | At CC mode |
| 5 | Short circuit protection | Short circuit protection should be automatically recovery after remove the condition. | |
| 6 | Reverse polarity protection | When output wires are reversely connected to the battery the charger will not operate and will work normally when DC wires are correctly connected. |
Charging indicator
| No. | Item | Status | Remark |
| 1 | Power on | LED1: Red | |
| 2 | Charging | LED2: Red | |
| 3 | Fully charged | LED2: Green | |
| 4 | Charging Voltage Display | Yes | |
| 5 | Charging Current Display | Yes |
Safety & EMC
| No. | Item | Standard (or test condition) | Remark | |
| 1 | Electric strength test | Input-output | 1500Vac/10mA/1min | No breakdown |
| 2 | Isolation resistance | Input-ground | ≥10Mohm@500Vdc | |
| Output-ground | ≥10Mohm@500Vdc | |||
| 3 | Leakage current | <3.5mA | Vin=264Vac | |
| 4 | LVD | EN60335-1:2002+EN60335-2-29:2002 | ||
Input connector (selectable):
Input connector for your selection:
230V input charger with No. 5 connector.
Certificate
Packages
Shipping
Benergy can arrange shipping for you. Shipping way can be by sea, by air,by UPS/DHL/Fedex delivery to your door.
FAQ:
Q1: What battery can this charger charge?
A1: This charger is designed for Lifepo4 battery 12.8V (4S). If you need other chargers, pls contact us. We can provide you best solutions.
Q2: Do you have Li-NCM charger?
A2: Yes, we also have other chargers which can charge Li-NCM batteries, but pls make sure which type battery pack need to charge when you select the charger.
Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q.What is your warranty?
A5:We provide 1 year quality warranty for the charger. If need longer warranty, price will be different.
