14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger

Get high-performance 14.6V10A 20A 30A 40A LiFePO4 Battery Charger and 12V100ah Lead Acid Battery Charger direct from the factory. Efficient and reliable charging for all your battery needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FY1469900
Nominal Voltage
12V
Charger Style
Simple Charger
Compatible Battery Type
12-Volt
Size
Battery Pack
Certification
SASO, GOST-R, KC, PSE, CTIA, RoHS, TUV, CB, CE
Socket Type
Us, EU, UK, Au
Recyclable
Recyclable
Item Name
12V LiFePO4 Battery Charger
Inrush Current
15A for a Cold Start
Protections
Short Circuit Overload Overvolt
Color
Black
Application
Electric Car, Motorcycle
Weight
0.5kgs
Efficiency
>92%
Payment
30% Deposit in Advance, 70% Before Shipment
Leadtime
3-6weeks
Description
14.6V Battery Charger for 12V Battery
Transport Package
White Box+Export Carton
Specification
Dimension: 154*60*36mm
Trademark
Fuyuang
Origin
China
HS Code
8504409999
Production Capacity
500000PCS Per Month

Product Description

UL listed 14.6V 10A LiFePO4 Battery Charger for RV

Advantage:

*Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.
*All power supply,battery chargers and power adapters are 100% burn-in tested and inspected with automatic test equipmrnt(ATE).
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*We back our items with three-year guarantees.

*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable

Specification :

Item Parameter
Part name: UL listed 14.6V 10A LiFePO4 Battery Charger for RV
Model No. FY1469900
AC Input:  100-240V,50/60HZ
Max charging voltage: 14.6V
Max charging current: 10A
Inrush current:  Limited 15A when cold starting
Protection:  short circuit, over current and over voltage protection.
Efficiency: 88%
Power factor:  0.89
HIPOT testing:  3000-3700V
Drop testing:  meet UL standard.
Temperature:  Case 65 ºC Max.
Operating temperature  -29ºC~ +45.5ºC
Storage temperature:  -40ºC~ +75ºC
MTBF:  30000 hours full rated load at 25ºC
Energy Efficiency:  Level VI( DOE or COC)
AQL:  MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0

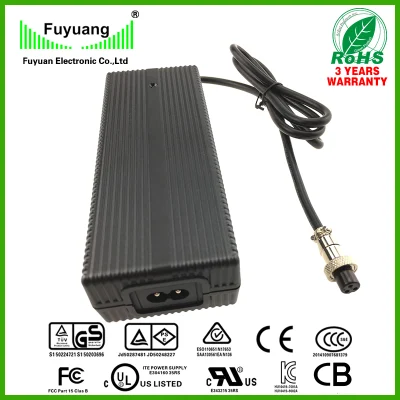

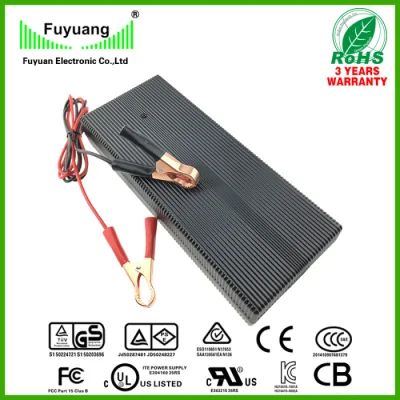

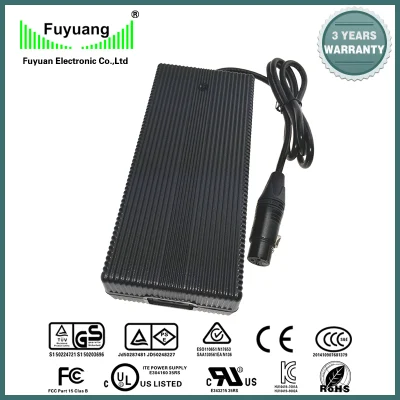

More Pictures:

14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger
Battery Charger Connectors:

  • Port and Pin Numbers: The port and pin numbers are usually embossed or imprinted on the plug-in end of the battery charger connector.

  • 2-Port Inline - 2-port inline connectors are used on some versions of Rad-2-Go and Zappy scooters plus a handful of other Chinese-made electric scooter brands.

  • 3-Port Inline - 3-port inline connectors are by far the most common type of battery charger connectors used on electric scooters. They are used on most Chinese-made electric scooters and bikes including the following brands: Razor, Rad-2-Go, Boreem, E-Scooter, Scoot-N-Go, Sunl, Terminator, X-Treme, plus many others.

  • 3-Pin XLR - 3-pin XLR connectors are commonly used on 12 Volt, 24 Volt, and 36 Volt electric scooters. They are used on the following scooter brands: eZip, IZIP, Currie, Schwinn, GT, Mongoose, Lashout, Xcaliber, Bladez, E-Boarder, Tomb Raider plus many others.

  • 4-Pin XLR - 4-pin XLR connectors are used on newer models of eZip and IZIP 24 Volt and 36 Volt electric scooters and bicycles.

  • 3-Port House - 3-port house connectors are used on a large number of 36 Volt, 48 Volt, and 60 Volts electric scooters including Electra® Voy, Tao Tao, Baja, X-Treme, Rad-2-Go, EVT, and E-Road plus many other brands.

  • 3-Port House for Panterra and Gio - 3-port house connectors for Panterra and Gio electric scooters have reverse polarity from standard electric scooters.

  • 3-Pin House - 3-pin house connectors are used on HCF Cute 002, Cute 301, and Cute 302 and electric scooters.

  • Polarized C7 - Polarized C7 connectors are used on the City Bug E2 and Razor 132E electric scooters.

  • Coaxial - Coaxial connectors are most commonly used on smaller child-sized 12 Volt and 24 Volt scooters including Pulse, Razor, E-Scooter plus many others.

  • RCA - RCA connectors are commonly used on 24 Volt, 36 Volt, and 48 Volt electric scooters and bicycles. They are used on both lead acid battery and lithium battery chargers however the trend is for them to be used primarily on lithium battery

14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger
Producttion dept consist of coiling team, DIP team, injection, rework, assembling, packing, wire processing etc.

Certifications File No:
  1. UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215  Check here:fuyuang.en.made-in-china.com
  2. TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:fuyuang.en.made-in-china.com
  3. SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/
  4. C-tick file No.:N17653 & N136,  Check here: http://www.cotek.sg/approval.html
  5. PSE file No.:JD50195547 & JD50248227   &  JD 50287481 Check here: http://fuyuang.en.made-in-china.com
  6. EK file No.:HU10419-7001A  Check herewww.ktc.re.kr,
  7. KC file No.:HU10419-9002A  Check herewww.ktc.re.kr
  8. CE file No.:E0604412-01&S1403017 Check here:fuyuang.en.made-in-china.com
  9. RoHS file No.:CANEC1313005401 Check here: http://fuyuang.en.made-in-china.com
  10. CCC file No.:2014010907681379 Check here: http://fuyuang.en.made-in-china.com
  11. CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:fuyuang.en.made-in-china.com

 Recommended Charging Rates for Electric Scooter Battery Pack:

12 Volt
5-8 Ah

Pack

12 Volt
9-12 Ah Pack

12 Volt
17-20 Ah
Pack

24 Volt
5-8 Ah
Pack

24 Volt
9-12 Ah
Pack

24 Volt
17-20 Ah
Pack

slow rate:
12V 1A
quick rate:
12V 2A

slow rate:
12V 1.5A
quick rate:
12V 3A

slow rate:
12V 3A
quick rate:
12V 6A

slow rate:
24V 1A
quick rate:
24V 2A

slow rate:
24V 1.5A
quick rate:
24V 3A

slow rate:
24V 3A
quick rate:
24V 6A



36 Volt
5-8 Ah
Pack

36 Volt
9-12 Ah
Pack

36 Volt
17-20 Ah
Pack

48 Volt
5-8 Ah
Pack

48 Volt
9-12 Ah
Pack

48 Volt
17-20 Ah
Pack

slow rate:
36V 1A
quick rate:
36V 2A

slow rate:
36V 1.5A
quick rate:
36V 3A

slow rate:
36V 3A
quick rate:
36V 6A

slow rate:
48V 1A
quick rate:
48V 2A

slow rate:
48V 1.5A
quick rate:
48V 3A

slow rate:
48V 3A
quick rate:
48V 6A
