Overview

Basic Info.

Model NO.
ECAS-24000-1536150
Nominal Voltage
4.5V
Charger Style
Simple Charger
Compatible Battery Type
AAA/AA
Size
AAA
Certification
KC, PSE, CE
Socket Type
For E.U.
Recyclable
Non-Recyclable
Applications
Charge 153.6V Li Battery Pack
Waterproof Rate
IP20 or IP54
Warranty
2 Years
Max Voltage
153.6V Customized
Charging Current
153.6V 150A
Battery Pack Charging Time
2-5 Hours
Transport Package
Carton
Specification
378*428*791 mm
Trademark
E-CAS
Origin
China
Production Capacity
36500PCS/Year

Packaging & Delivery

Package Size
39.00cm * 44.00cm * 80.00cm
Package Gross Weight
56.000kg

Product Description


Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli

Product Description

Lithium battery charger


Super-fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli

Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, th/is charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/YingliSuper-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/YingliSuper-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli

Product features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Charging parameters are insensitive to the AC input line voltage variations.

5) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

6) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

7) Aluminum casing, light weight, portable.

8) 100% full load burn-in test.

9) 2 years warranty.

Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli

Product Parameters

153.6V150A Battery Charger Parameters

Name: ECAS-24000-1536150 Output plug Rema320A
Input voltage AC380V±15% CAN Slectable
Enter the phase Three phase four line Charging protocol Customizable
Frequency 50/60Hz Match to the battery type Lead acid/lithium battery
Input current(max) ≤42.8A Product size 378*428*791 mm
Power factor ≥0.99 Net weight 55kg
Interior put power ≤28.2KW Cooling down method forced air cooling
Enter the plug Three phase +PE Working temperature -20ºC-50ºC
Conversion power ≥0.92 Working humidity 0%-95%
Rated output voltage 172.8V Levels of protection IP20
Rated output current 100A IP level(whether optional) IP54
Output rating 26Kw Decibel <65db
Output voltage range 10Vdc-176Vdc Work altitude <2000m


Other Item Battery Charger


Model Number XYM12V30A XYM2415A XYM2420A XYM36V15A XYM48V10A XYM60V8A
Max charge curent (A) 30A 15A 20A 15A 10A 8A
Maximum power point 17V 34V 34V 45V 68V 75V
Input Voltage (DC) 17V 34V 34V 45V 68V 75V
Applicable battery  Lead acid maintenance free, lithium ternary battery, LiFEPO4
Maximum efficiency 90%
Output voltage stabilization accuracy ±1%
Input Voltage Stabilization Accuracy ±1%
Work Temperature -30ºC-65ºC
Seismic grade SAEJ1378
Cooling method Forced air cooling
Over temperature protection 75ºC±5ºC
Input undervoltage protection Under voltage point 165V
Output overcurrent protection 110*Max charge current
Output short circuit protection The charger shuts down and automatically recovers after the short circuit is removed when the output is short circuited,
Battery reverse connection protection The charger shuts down and gives an alarm, which automatically recovers after connect correct when the battery line is connected inversely.
battery type battery cell nominal voltage charge voltage charge current
3.2VLifepo4 12V 4S 14.6V 40A
24V 8S 29.2V 30A
36V 12S 43.8V 25A
48V 16S 58.4V 20A
60V  20S  73V 15A
72V 24S 87.6V 12A
Lithium battery customization Lithium battery manufacturers
Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli
Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli
Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli
INTRODUCTION
Most of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:
1 Big volume and high weight, not convenient for transportation and use
2 Lacking protection function, bad reliability
3 Must manual adjust charge current, difficult to full charge and avoid over charge the battery.
4 Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.
ADVANTAGE
1 Short-circuit protection: output current will cut off automatically when short-circuit.
2 Overload protection: Output Current Will Be Limited Automatically When Overload.
3 Reverse polarity protection: it will shut down until fuse or the fault removed.
4 2-stage charging mode: CC(Constant Current), CV(Constant Voltage)
5 Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.
6 LED Meter available: Show Charging Voltage and Charging Current.
7 All kinds of production has passed the CE certification and ROHS.
8 Aluminum shell:The charger body uses aluminum shell,convenient heat dissipation ,and is not easy to deform ,not easy to damage,give you a perfect apperance and use experience.
9 Automatic Fan Forced Ventilation Forced Ventilation helps to cool the charger in time
10 Note: The charger should be placed in good ventilation and free of flammable materials.



Scene description

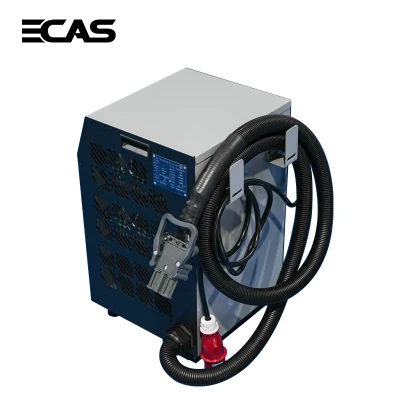

             About the plug of the charger

Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli


Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli

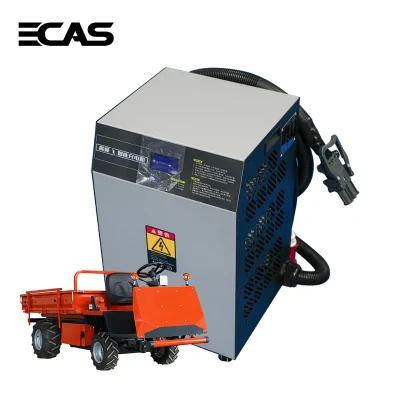

APPLICATION FILED


Super-Fast Lithium/Lead Acid Battery Charger 24000W 153.6V 150A Heli/Toyota/Linde/Tesla/Yingli

Common Faults and Solutions:

1) Error input voltage: Check if the input voltage conformed to the requirement or not.

2) Abnormal AC input: Check whether there is AC voltage and whether the input plug is loose.

3) Machine over heat: Check that the fan is running. Also pay attention to ventilation at the

working place of charger, covering anything on the charger is not allowed.

4) Output short circuit: Check the wire line of output terminal to exclude short-circuit.

5) No battery or reverse connection: Check the battery connection, connect the battery correctly.

6) Battery voltage is too low: Make battery voltage up to the starting voltage of charger
